UNITRAY
UNITRAY
SKU:
Feature

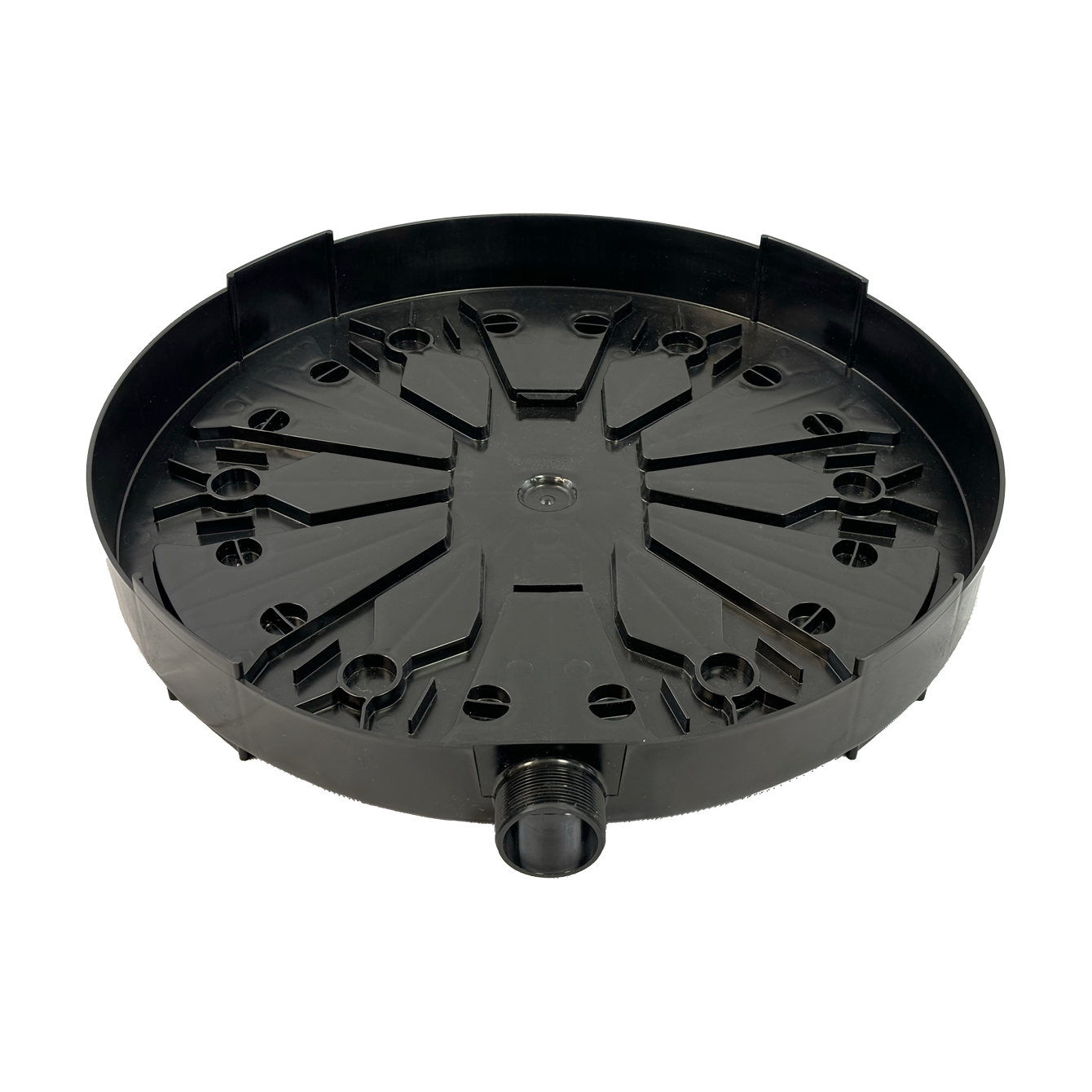

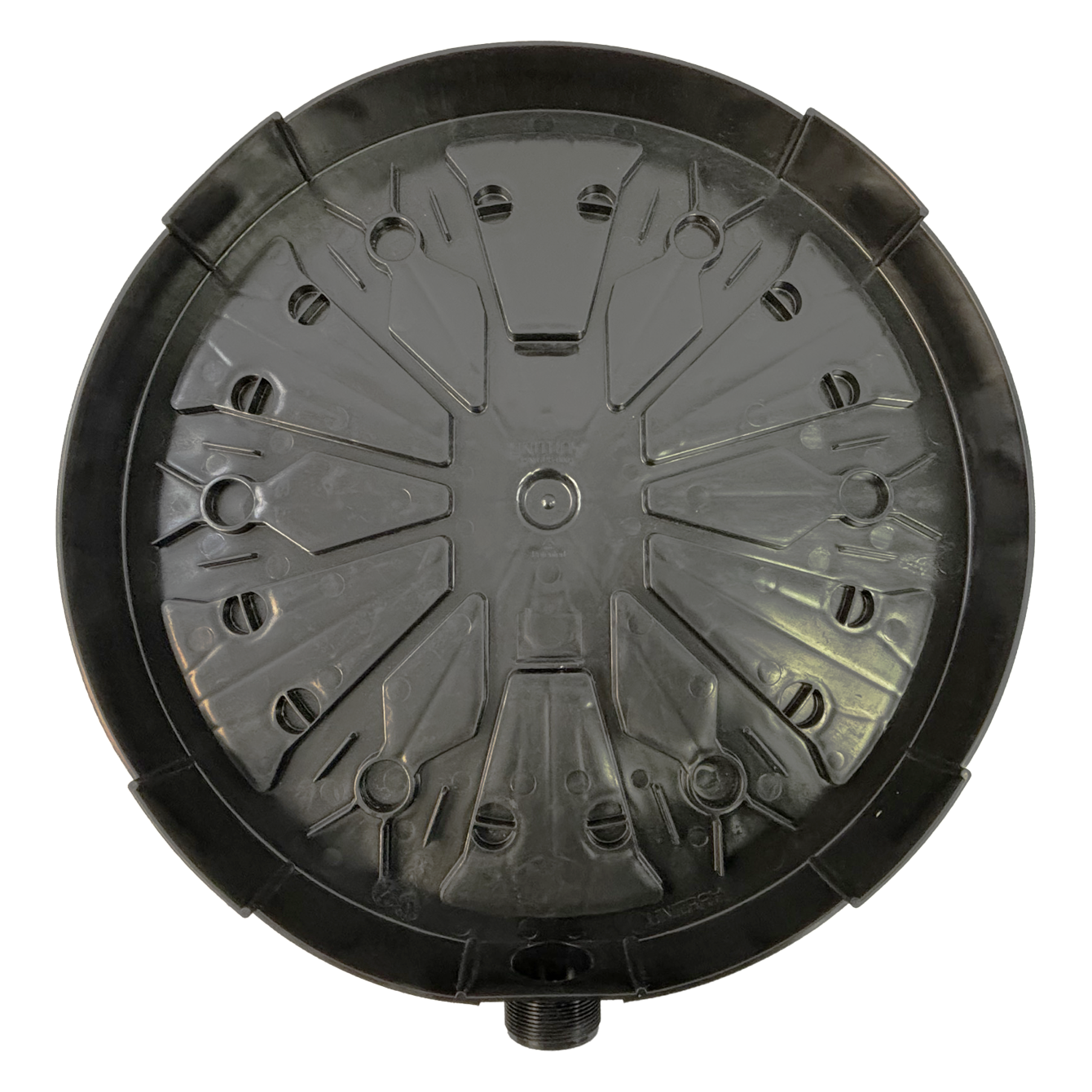

Polymer safetray with integrated outlet and elevating ribs to allow water and air flow as per AS3500.4 clause 5.4.5(b). Available in three sizes to suit HWU's from 25L to 315L. UV stabilised and non-electrically conductive.

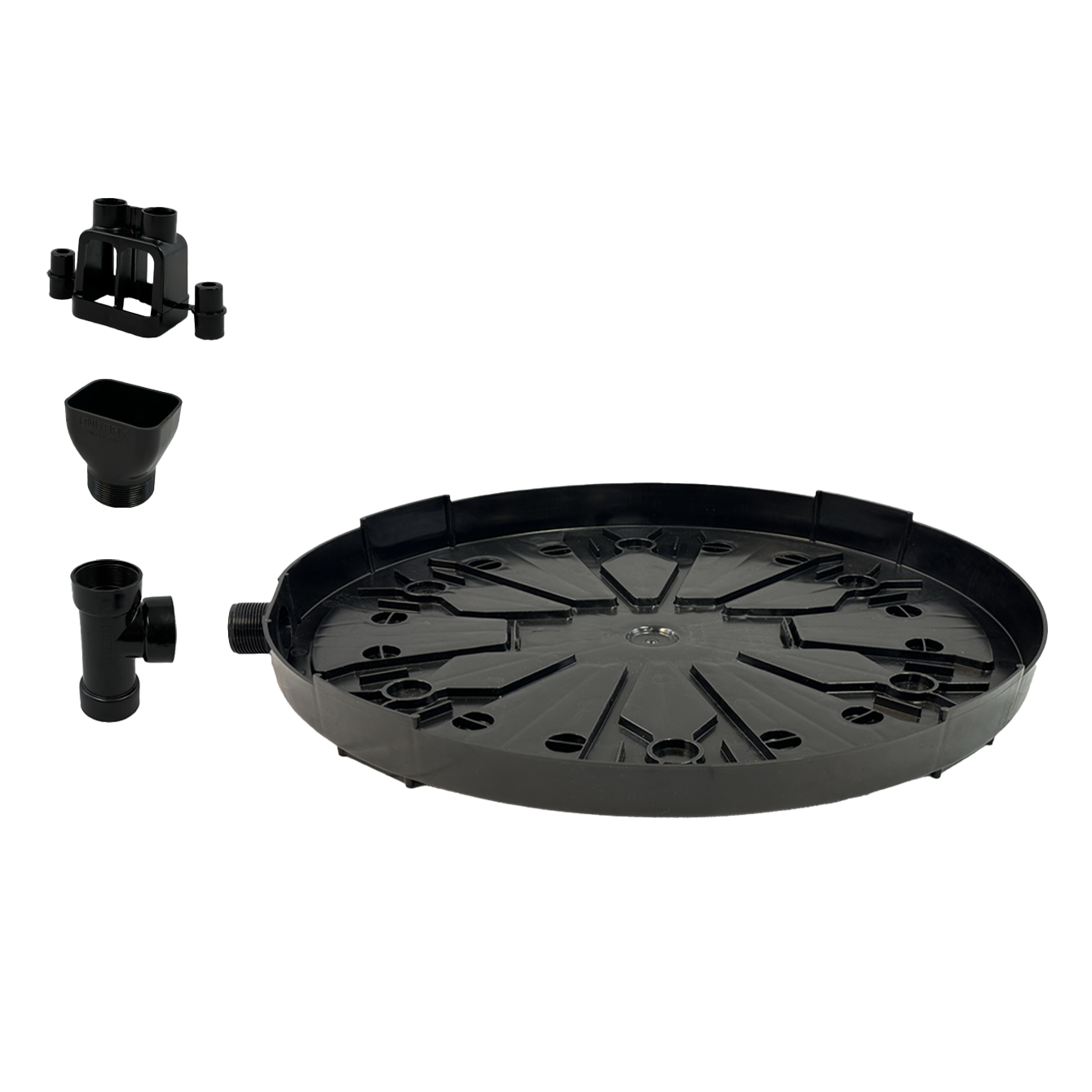

Kit includes: Unitray Tee Adaptor, Unitray Tundish, Unitray Tundish cap
Benefits:
- Easily & rapidly assembled – representing significant labour cost savings over current methods.
- Design complies with and exceeds AS 3500 National Plumbing Code requirements.
- No soldering, brazing, or gluing involved in tray assembly – it is threaded, HDPE fusion welded, and coupling connection compatible.
- Tray design engineered and certified to support and exceed maximum load requirements.
- Manufactured from non-electrically conductive material for safe installation.
- Manufactured from Ultra Violet (UV) light stabilized materials suitable for long term external use to a minimum of 20 years
- Circular space saving design fits into smaller positions where square type trays may not.
- Multiple size trays available to suit HWU’s from 25 litre to 315 litre capacities.

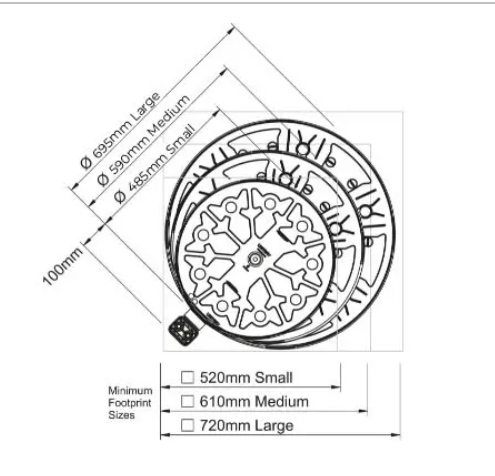

Sizing Guide
Each UNITRAY size has:
- Internal Diameter – The cylinder size that fits inside the tray. Internal diameters may vary up to 5%
- Footprint– The space needed for the tray to fit in the cupboard.
Check both measurements to ensure a perfect fit.
Please allow a 25mm clearance around the water storage cylinder as required in AS3500
