Thermasmart Insulation

Thermasmart Insulation

SKU:

Diameter
Width:
Length:
Height:
Diameter 1:
Diameter 2:
Diameter 3:
Material:
Offset distance:

Description

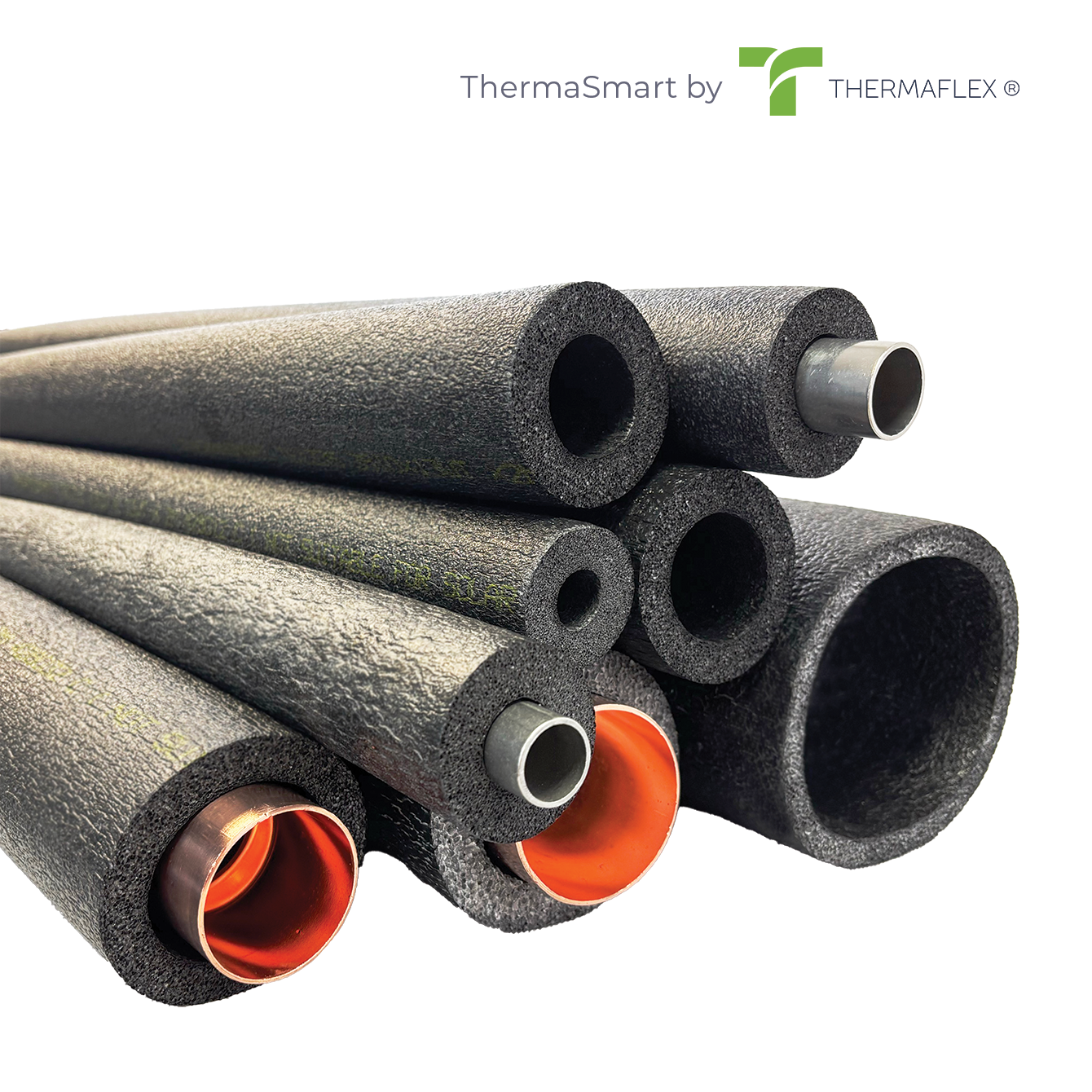

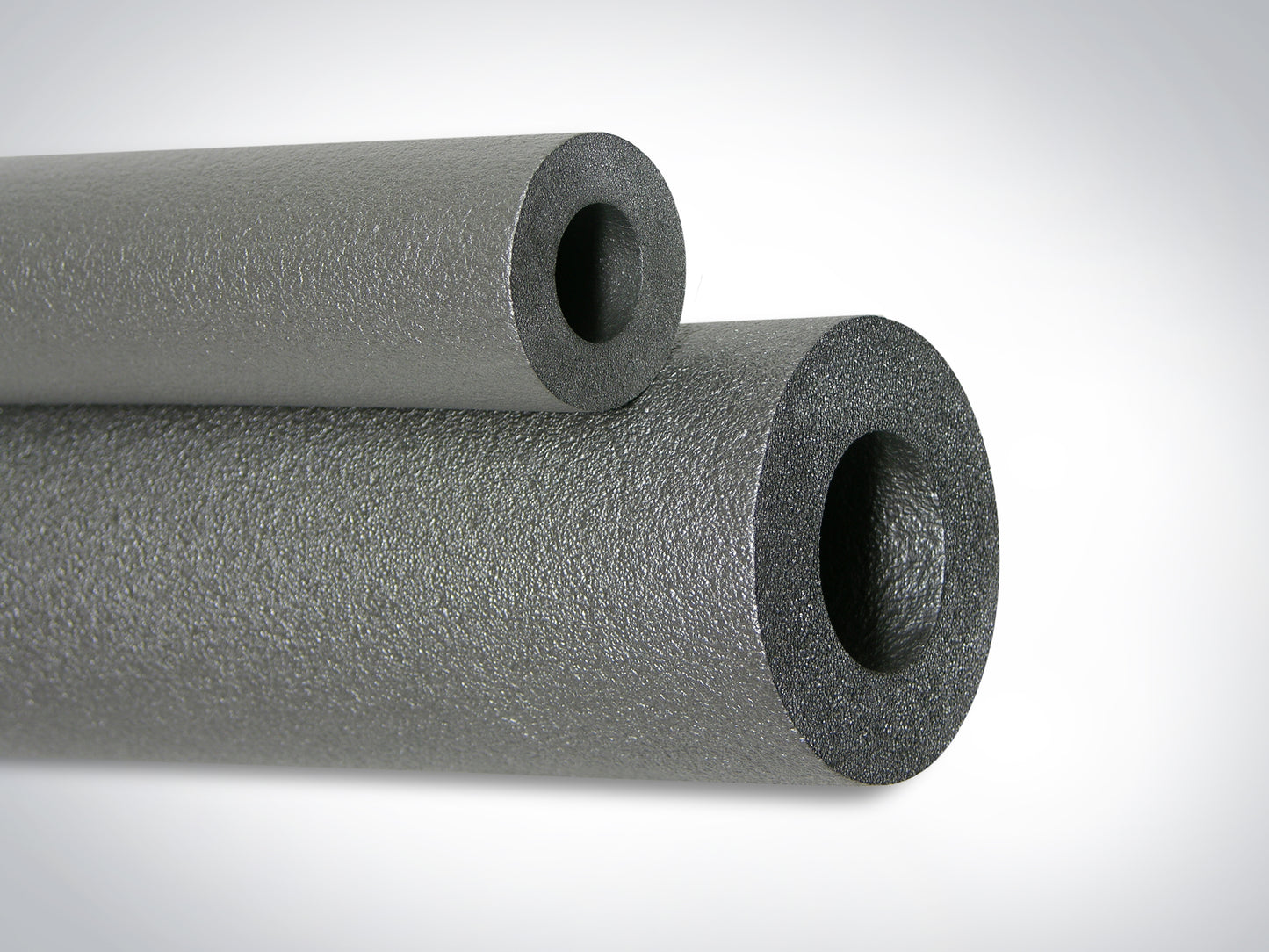

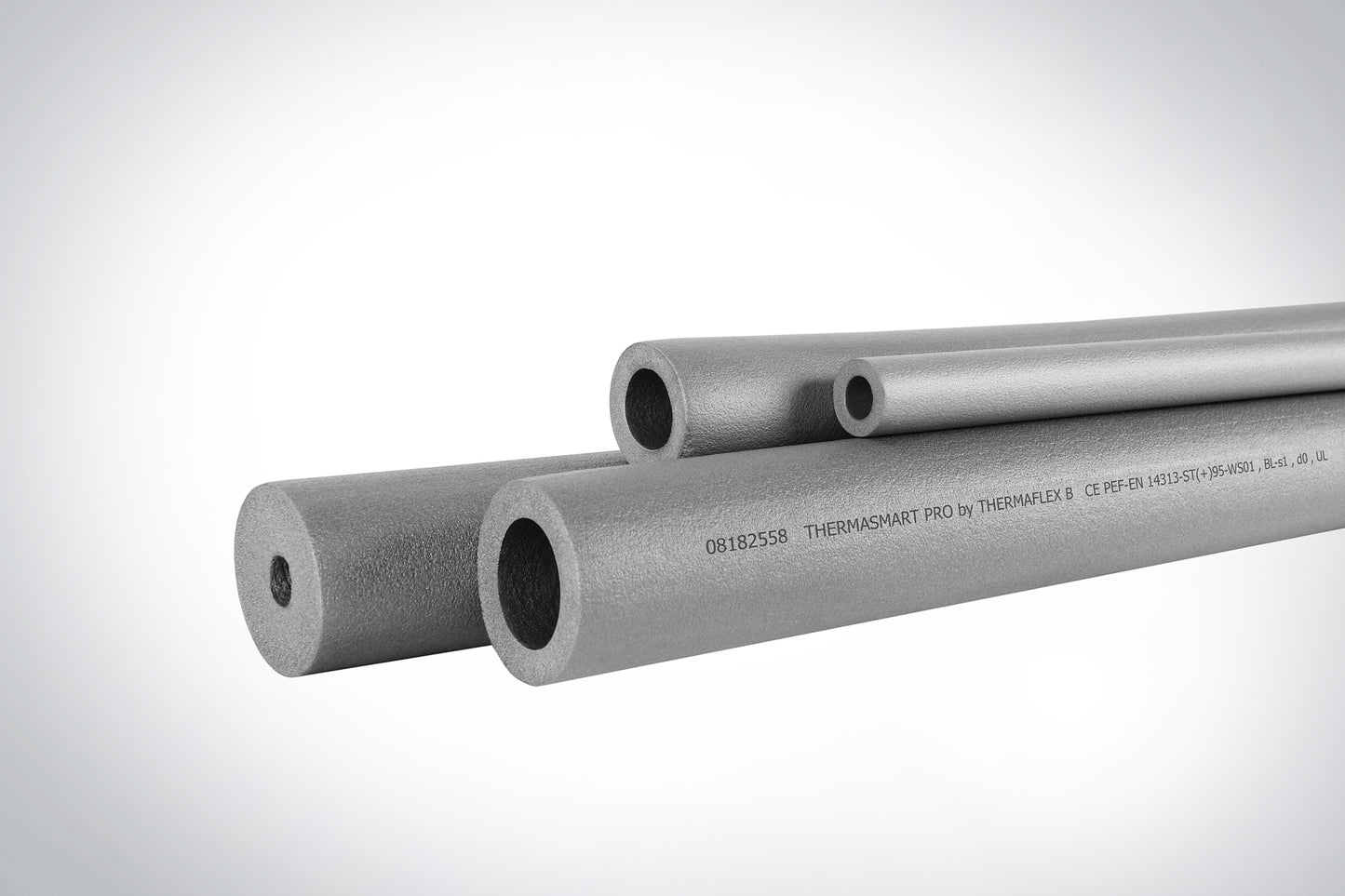

ThermaSmart®PRO, a fully recyclable thermal sheet insulation product made of direct extruded, closed-cell high quality poly-olefine foam for use in installations of heating & sanitary, air-conditioning-pipelines, ventilation, providing energy saving, protection against freezing and noise reduction.

ThermaSmart® PRO’s excellent insulation value reduces energy losses in pipes, ducts, chillers, air handling units, and other HVAC equipment.

Benefit from

  • Condensation free system for lifetime when installed by qualified insulator
  • Consistent performance - Damage free, robust insulation material
  • Safety - Excellent fire and smoke behavior
  • Fast fabrication of fitting insulation – Welding technique up to ID42mm
  • Gain point for Green building program - Cradle to Cradle Certified™ Bronze, EPD, RoHS

Features

  • Suitable for all HVAC applications
  • Temperature range: -80°C till +95°C
  • Improved flexibility compared to Thermoplastic Foam
  • Good insulation properties
  • Integral water vapor barrier, vapor cannot penetrate the insulation even when the skin is damaged
  • High mu-value
  • Closed cell structure; fungi and bacteria resistant.
  • High mechanical strength; less damages and necessity for repair.
  • Weldable system
  • No stress crack corrosion compared to Elastomeric Foam
  • Not much smoke development during fire
  • No toxic smoke during fire
  • High classification into international fire standards
  • Wheelmark certification by Veritas; as one of the few insulation products suitable for shipping and offshore. Including module D (third party control)
  • 100% recyclable; in line with sustainable construction LEED/BREEAM.
  • RoHS, Reach and VOC compliant; Cradle to Cradle Bronze certified


Warranty: 10 Years

Do you have any questions about this product?

Please enquire here. Or, you can call us on 0800 889 914

Download Datasheet Declaration of Performance Safety Datasheet
