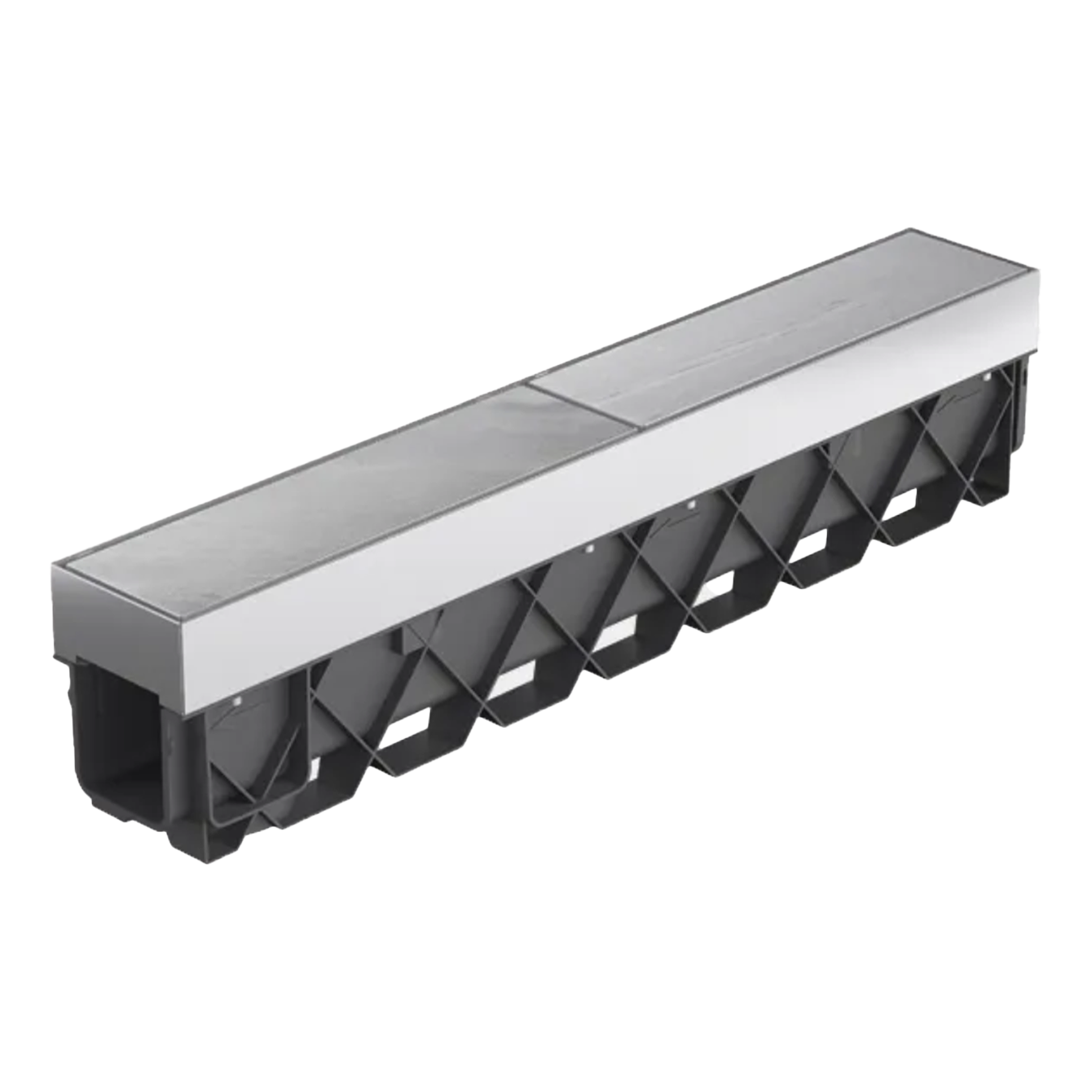

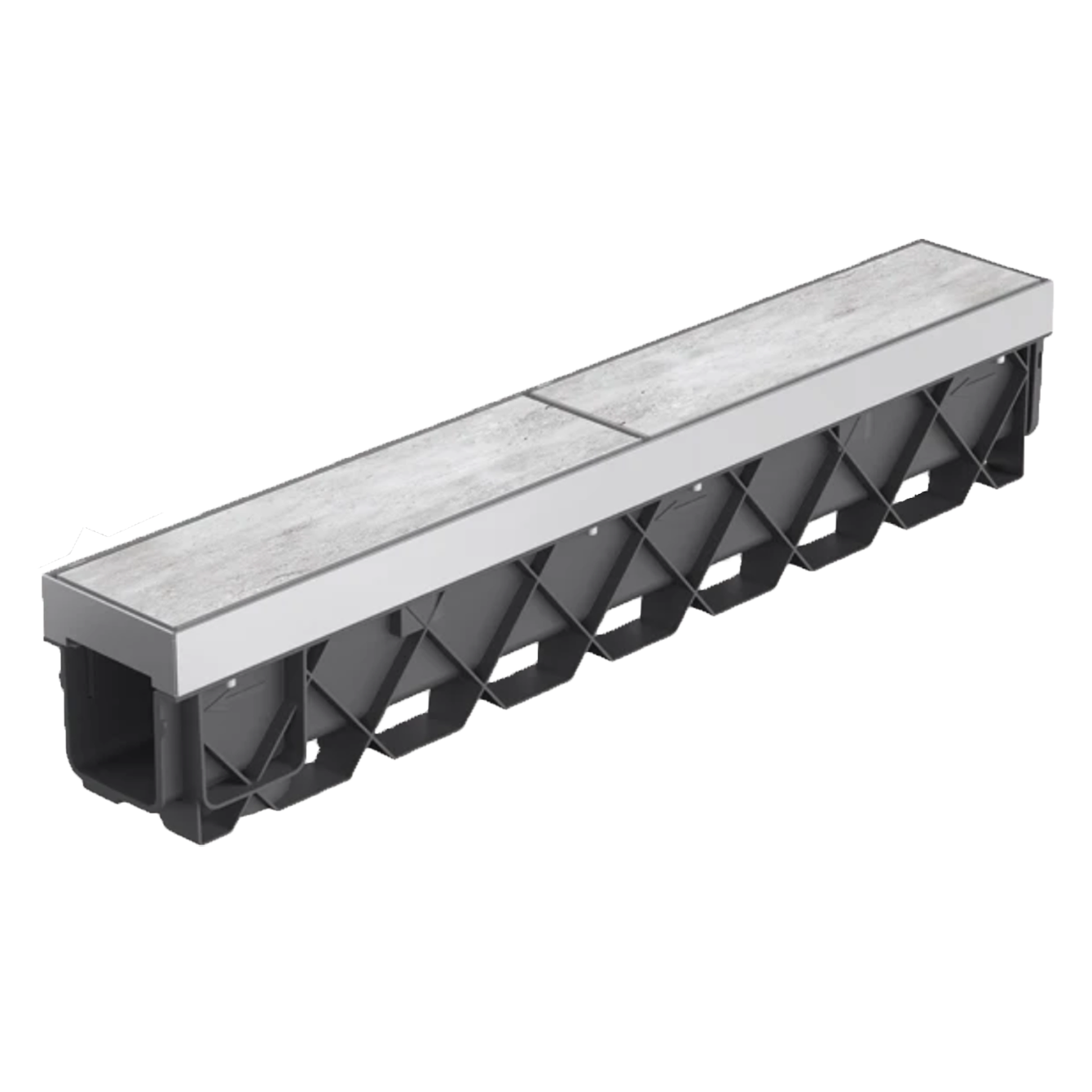

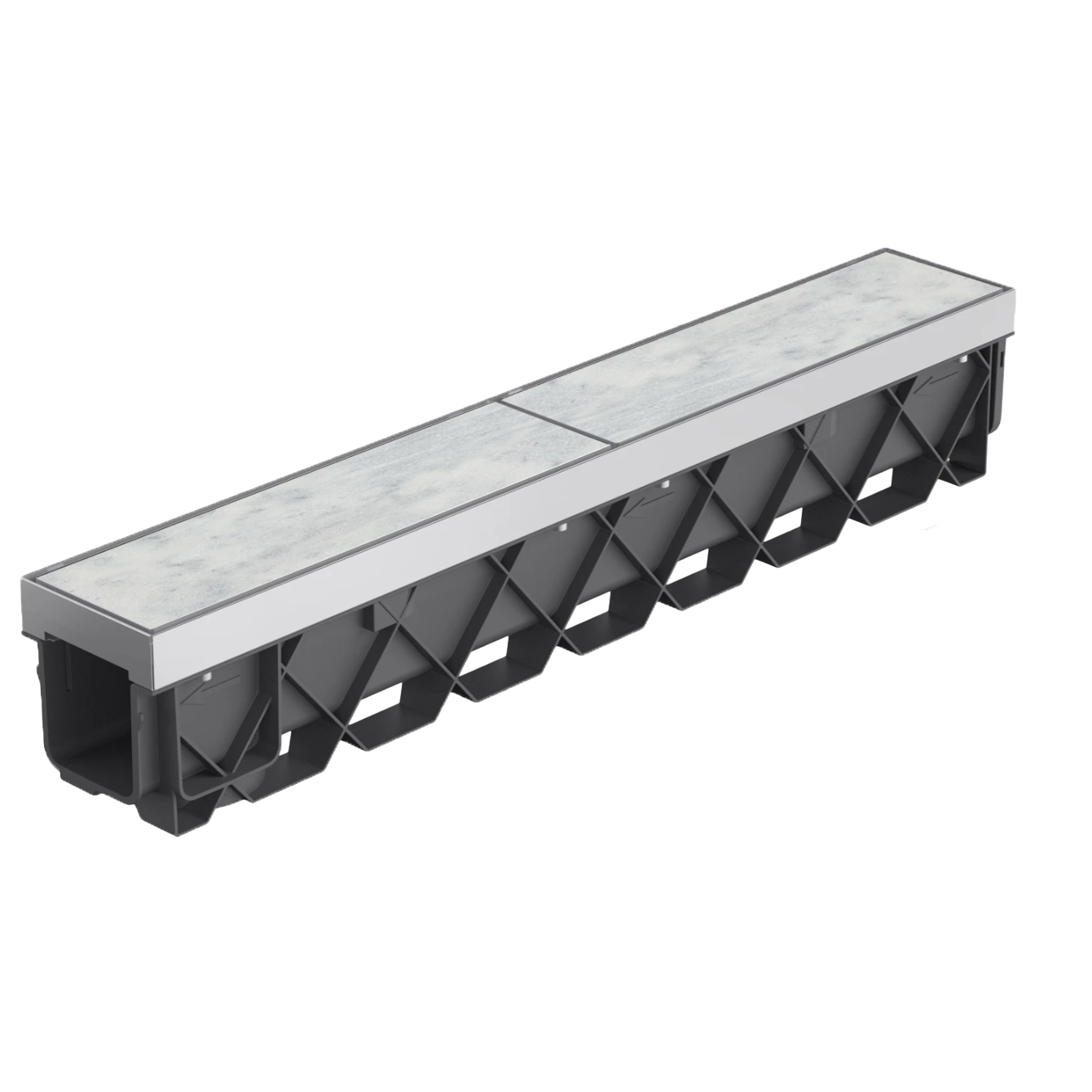

The RELN Storm Drain Pro™ Hidden Tray Channel delivers effective drainage without the look of a traditional grate. Designed for tiled, paved and stone outdoor areas, it creates a clean finish around patios, pools, courtyards and walkways.

Unlike heavier polymer concrete channels, the recycled polypropylene channel base is lightweight and easy to handle. It's easier to carry around site, simpler to position and quicker to install, helping save time on the job.

Durable, UV-stabilised and made for harsh outdoor conditions, Hidden Channel combines the premium finish architects want with the practical features plumbers and landscapers appreciate.

Why Use RELN Hidden Tray Channel?

• Creates a clean finish without the look of a traditional grate.
• Ideal for tiled, paved and stone outdoor areas.
• Lightweight recycled polypropylene channel is easier to carry and position than heavier polymer concrete channels.
• Faster and easier to install on site.
• Lighter weight makes transport, handling and freight easier.
• Tough construction is less likely to chip or break if it gets knocked around during transport or installation.
• Resistant to oils, salts and many common chemicals.
• Manufactured from recycled polypropylene.
• Made for tough NZ outdoor conditions.

Features

• Hidden tile-in design for a clean, modern finish.
• Concealed 316 stainless steel tray system.
• Suitable for 17 mm tile, 35 mm stone and 60 mm pavers.
• Lightweight recycled polypropylene channel base.
• UV-stabilised for outdoor use.
• Modular channel design for straightforward installation.
• Integral side flanges simplify layout changes and connections.
• Anti-flotation feet and rebar anchors help keep the channel in place during concrete pours.
• Lock-down HG Linear trays help prevent movement and heel catch.
• Removable trays allow easy access for cleaning and maintenance.

Key Specs

• Suitable for 17 mm tile, 35 mm stone and 60 mm pavers
• Side connection allows 90° channel direction changes
• 316 stainless steel internal tray with external surround.
• Multi-size outlet socket suits PVC pipe connections.
• Compatible with 90 mm stormwater and 100 mm DWV pipe systems.
