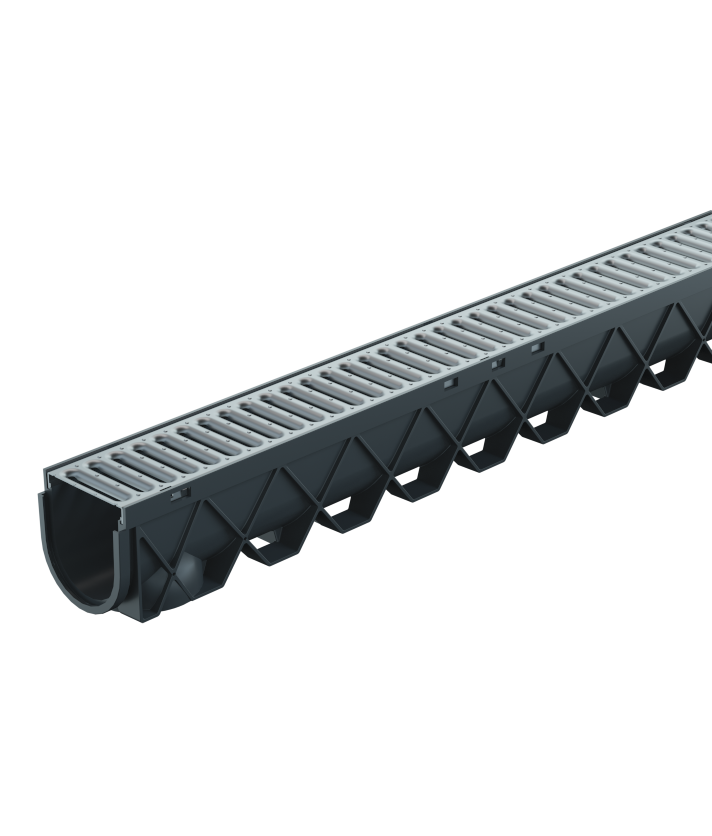

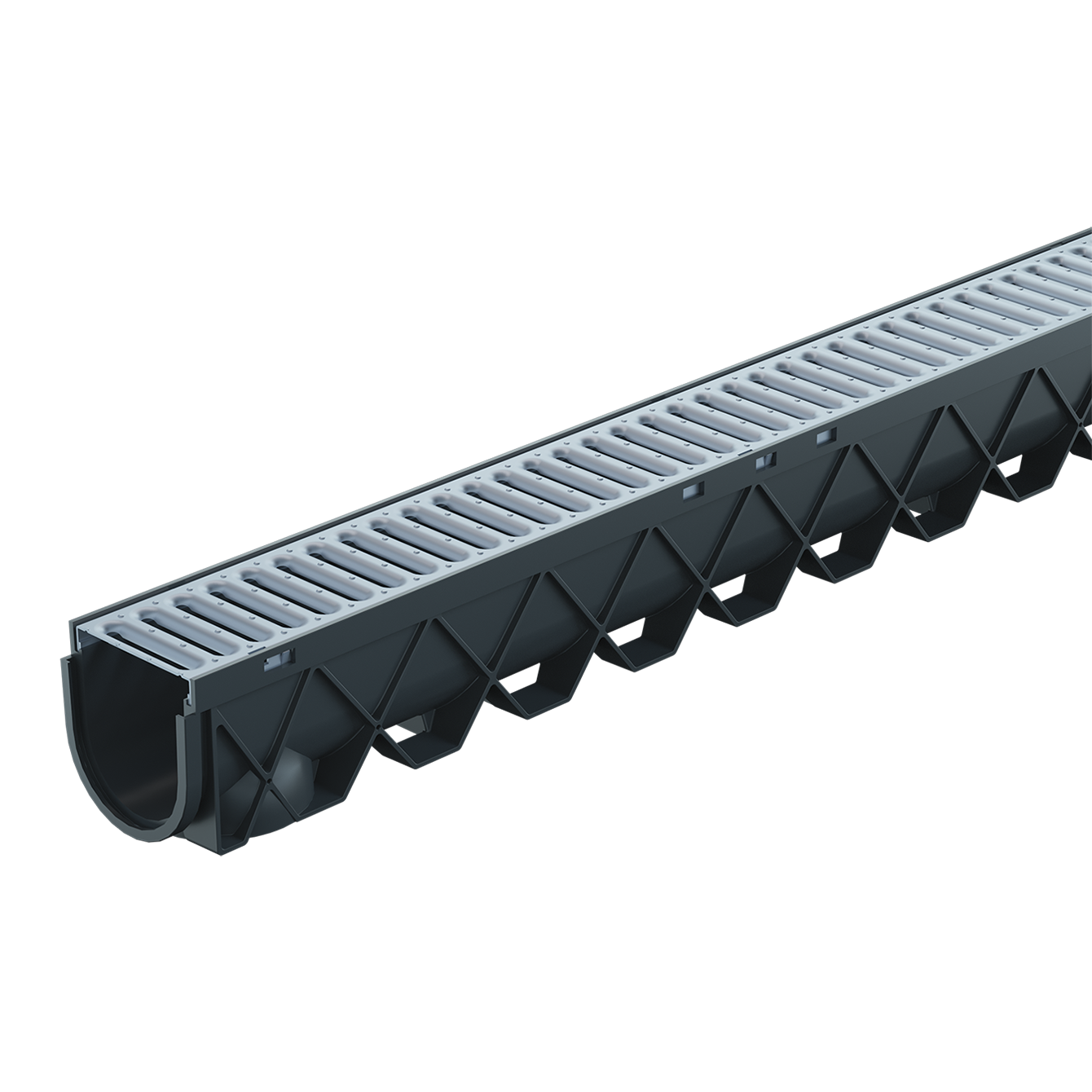

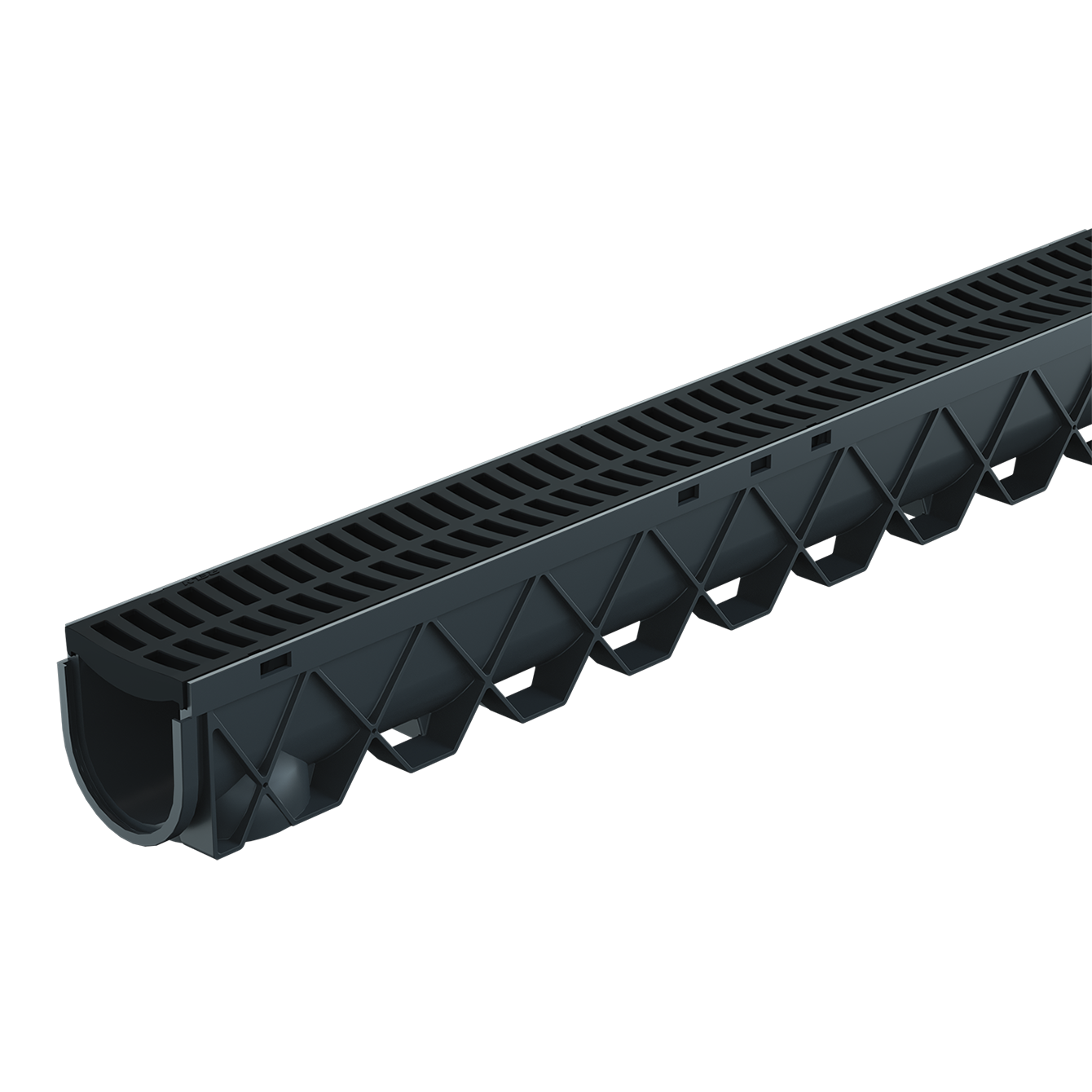

Storm Drain 3M complete with Grate

Storm Drain 3M complete with Grate

SKU:

Type

Storm Drain is a complete surface drainage solution, ideal for paths, driveways, and domestic areas with corners, T-sections, and X-sections. With its deep 100mm profile, Storm Drain efficiently collects and channels large volumes of surface water. A full range of interchangeable grates, accessories, hold-down feet, and pipe cut-outs make it simple to install for both DIYers and professionals.

Key Features

  • Durable construction – Made from tough, lightweight, UV-stabilised recycled plastic.

  • Easy installation – Quick connecting channels, interchangeable clip-in grates, and hold-down feet prevent floatation during concrete pouring.

  • Length options – Available in 1m and 3m channels. Longer 3m channels reduce work and minimise joins in larger drainage runs.

  • Efficient hydraulics – Half-pipe base design ensures smooth water flow.

  • Self-cleaning base – Designed to remain effective even at low gradients.

  • Complete drainage solution – Wide range of accessories and grates to suit paths, driveways, and domestic layouts with corners and T-sections.

  • Class A load rating – When installed correctly in concrete, grates withstand light vehicle traffic.

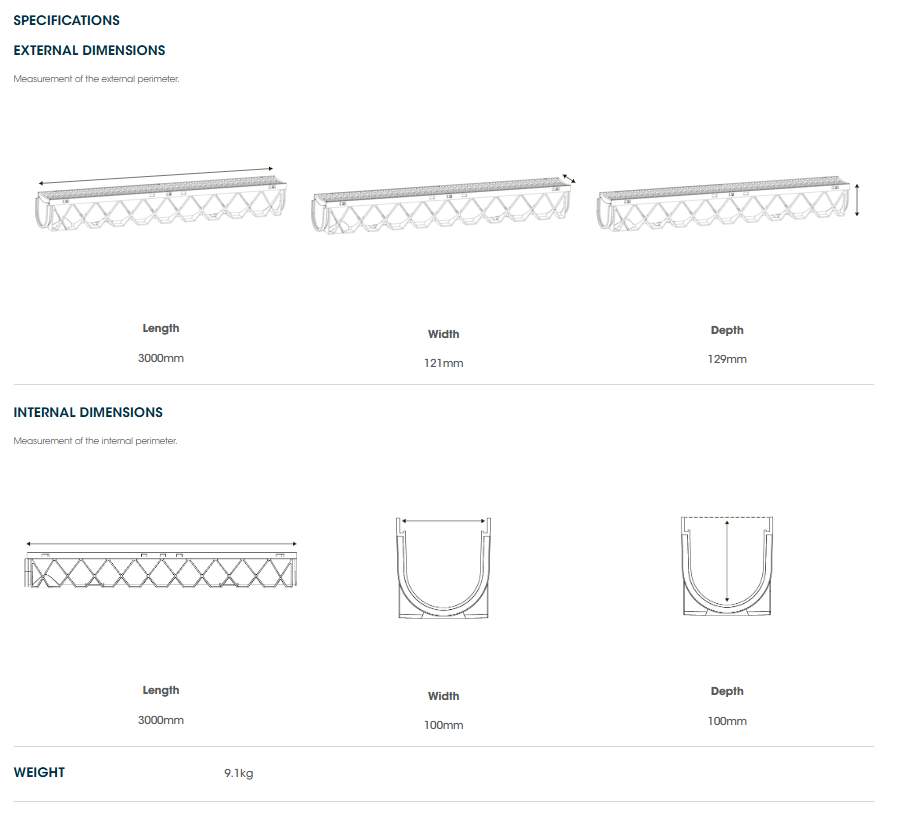

  • Deep 100mm profile – Captures and directs large volumes of water with ease.

  • Plumber-friendly – Bottom outlet can be cut or drilled to fit 90mm PVC stormwater pipe.

  • Environmentally conscious – Manufactured from 100% UV-stabilised recycled plastic.

  • Installation note – For connecting PVC stormwater pipe to bottom or end outlets, use silicone. (Plumbers’ glue will not adhere to polypropylene.)

Warranty: 10 Years
