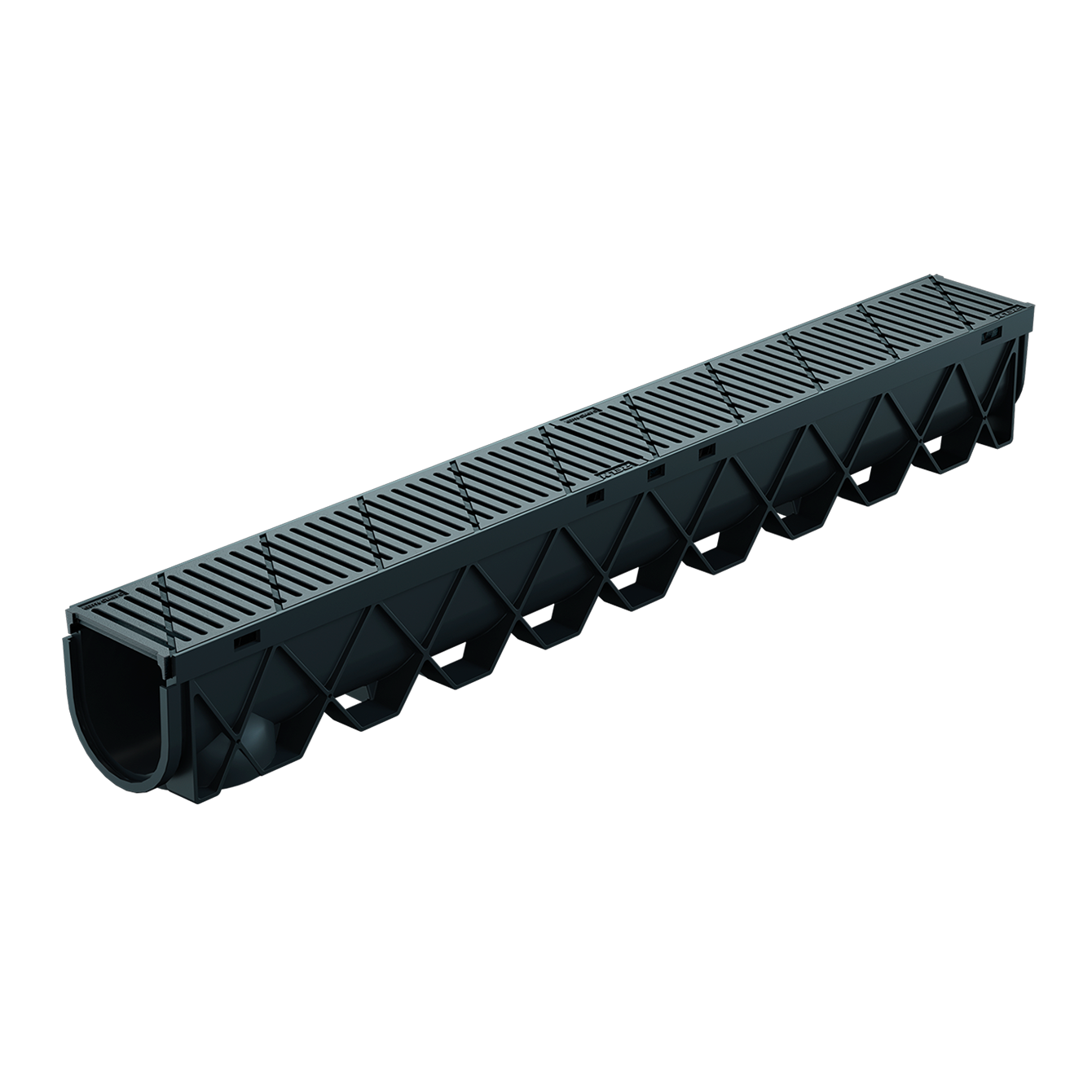

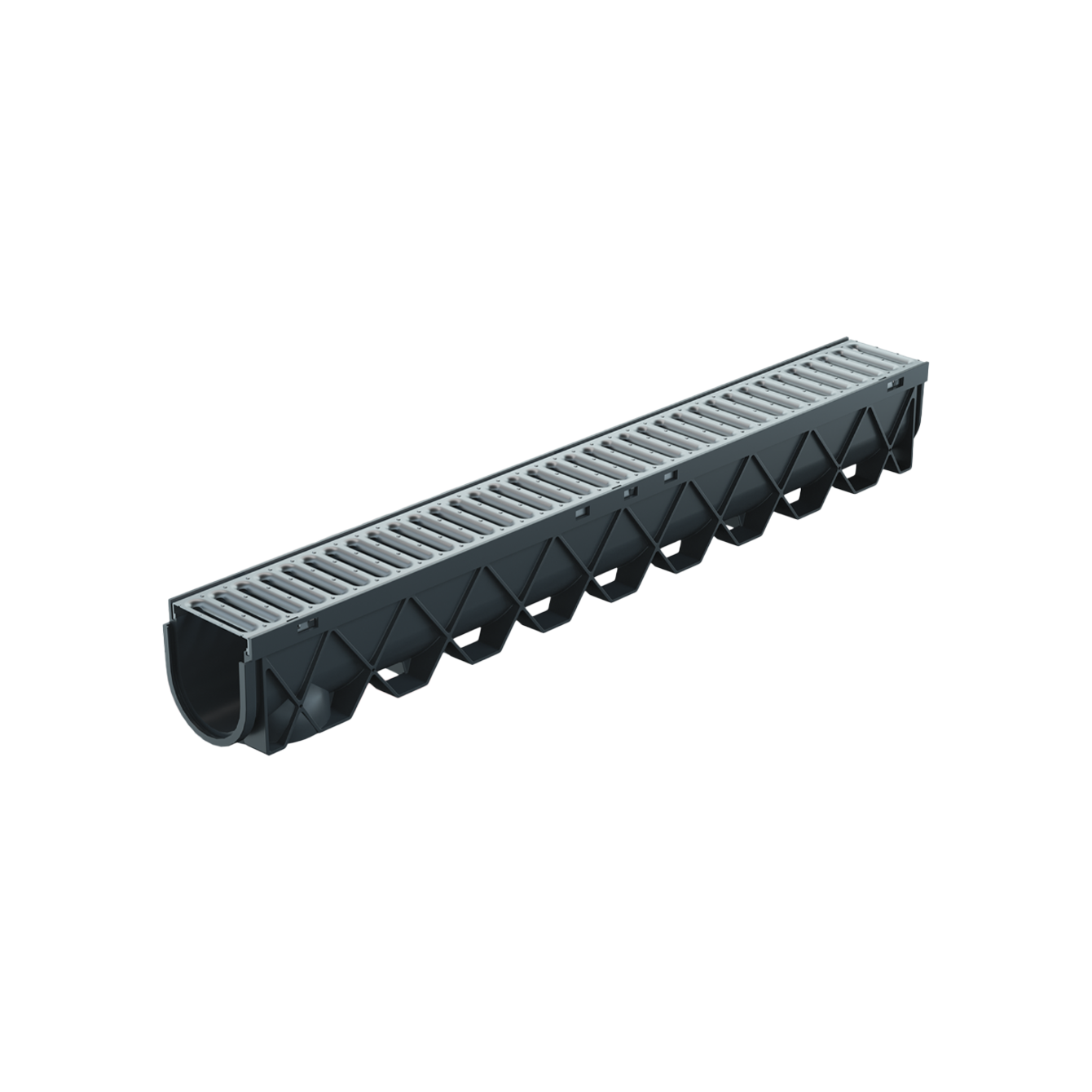

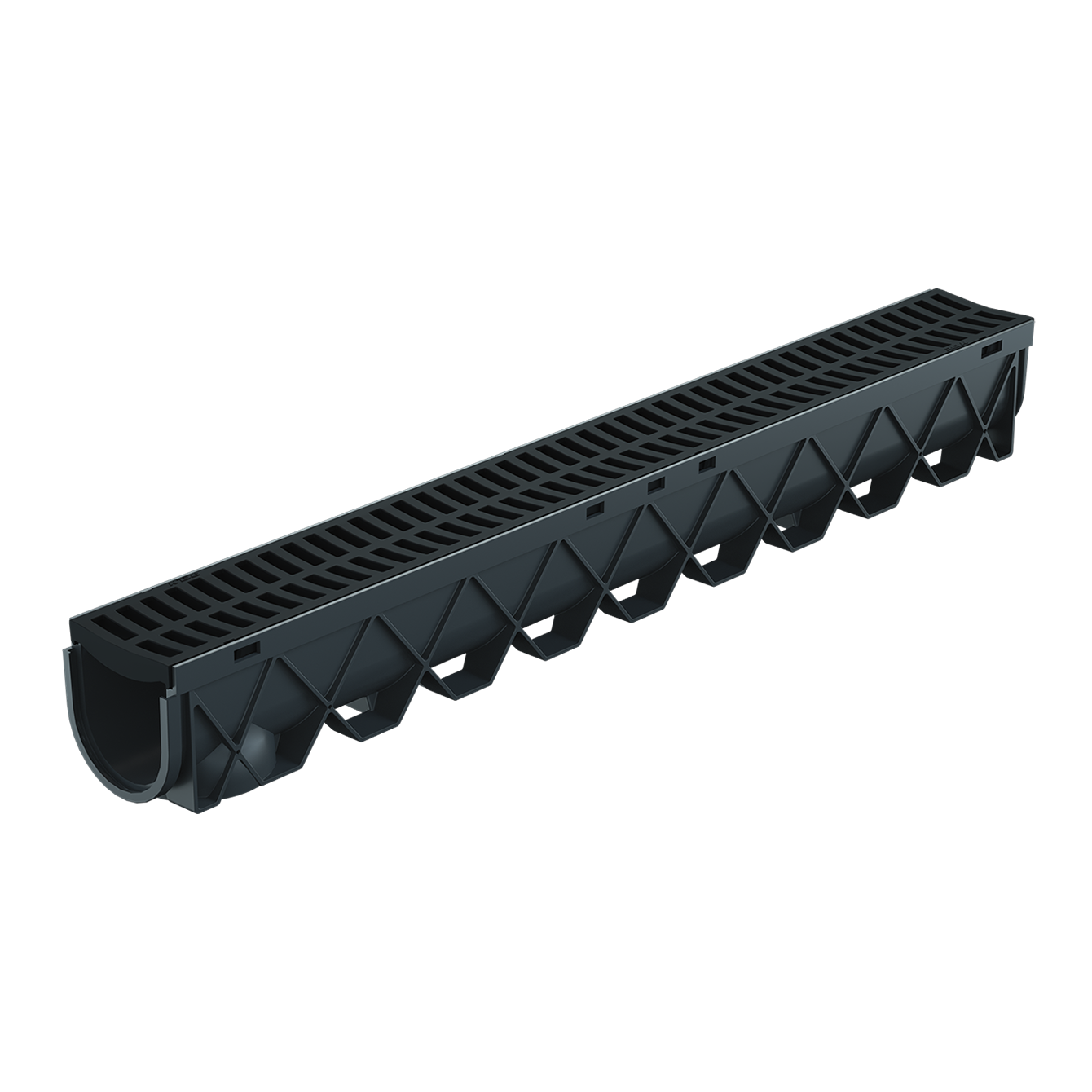

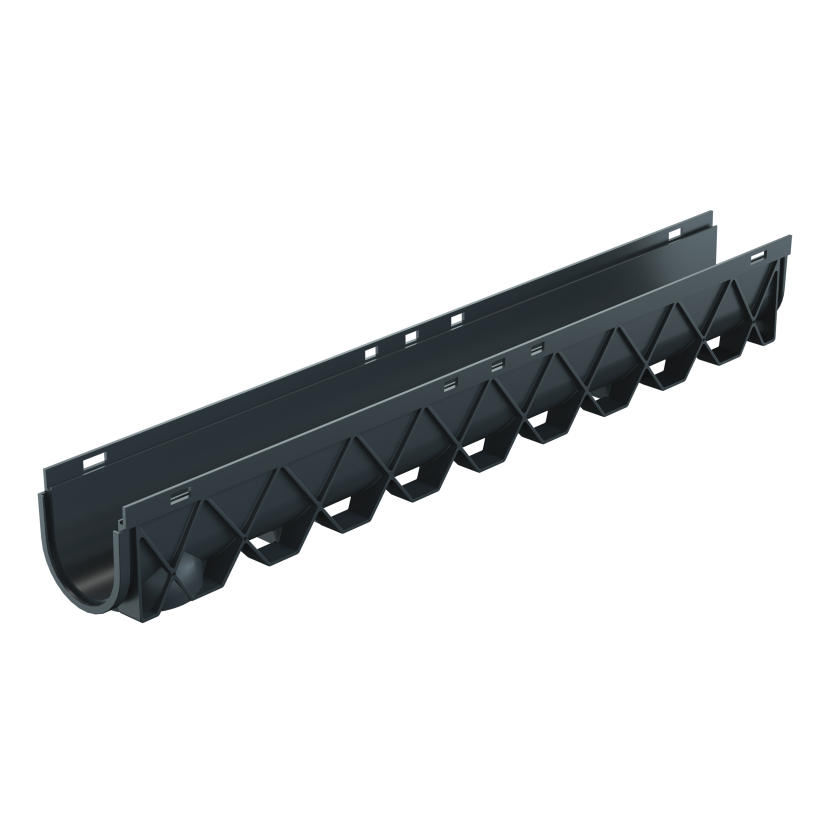

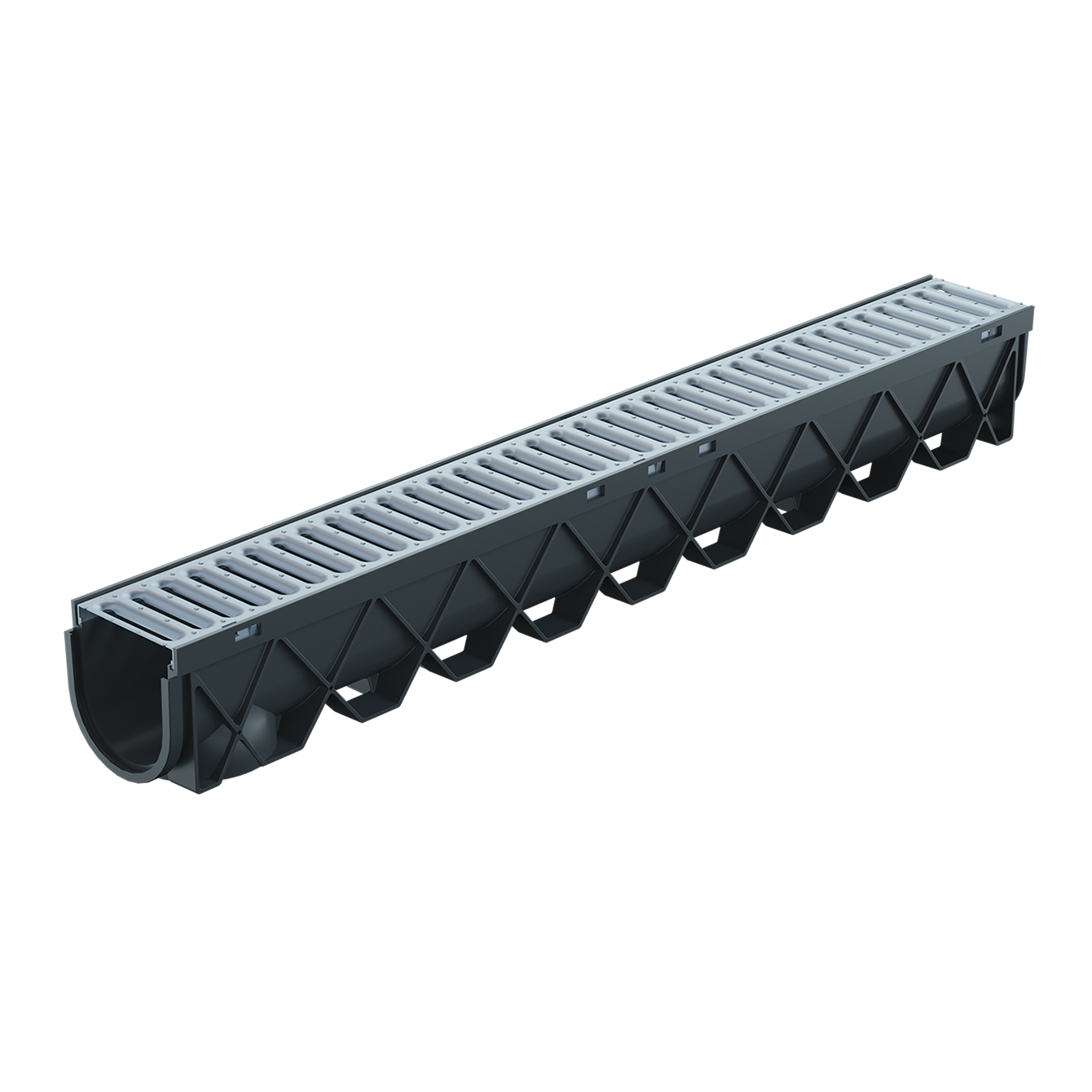

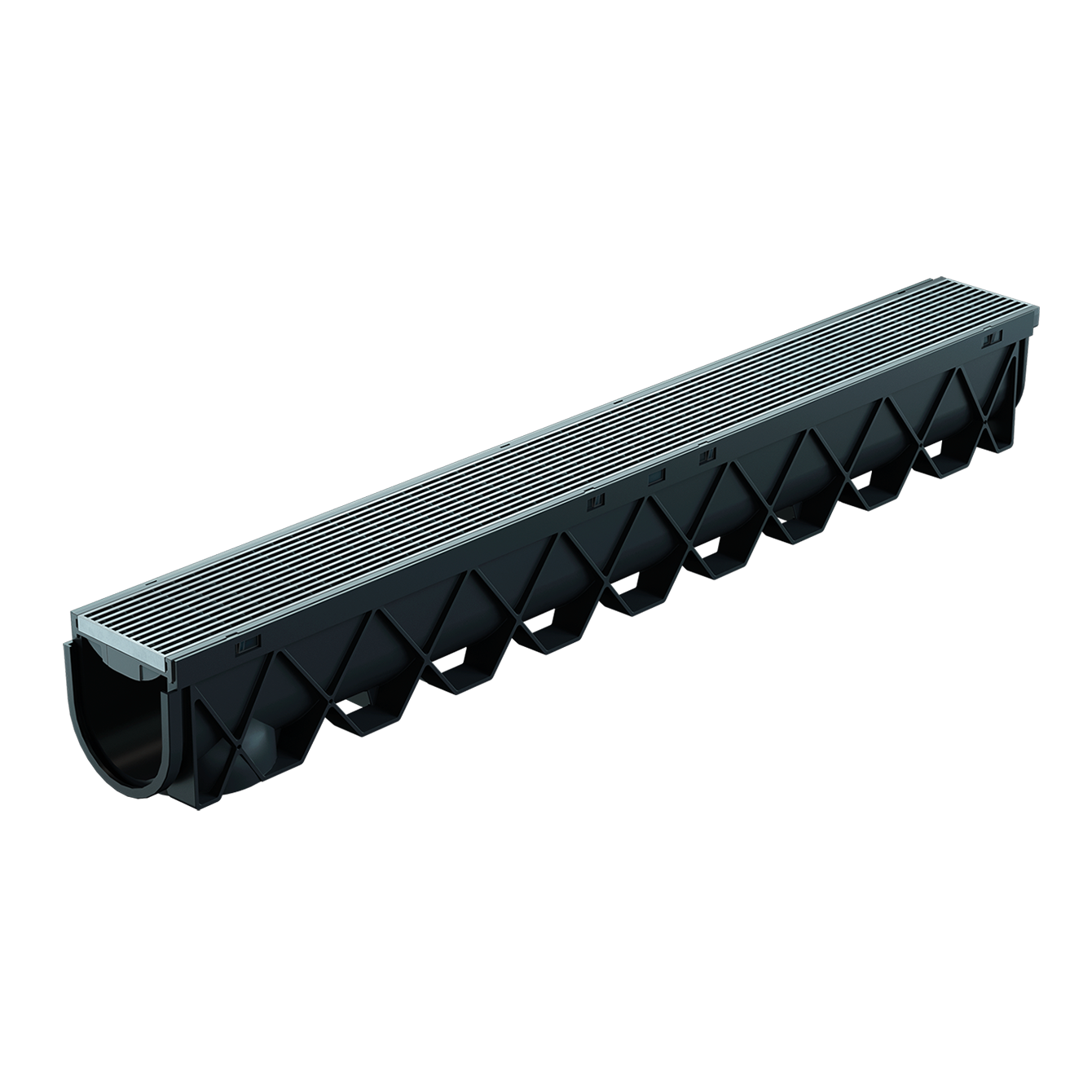

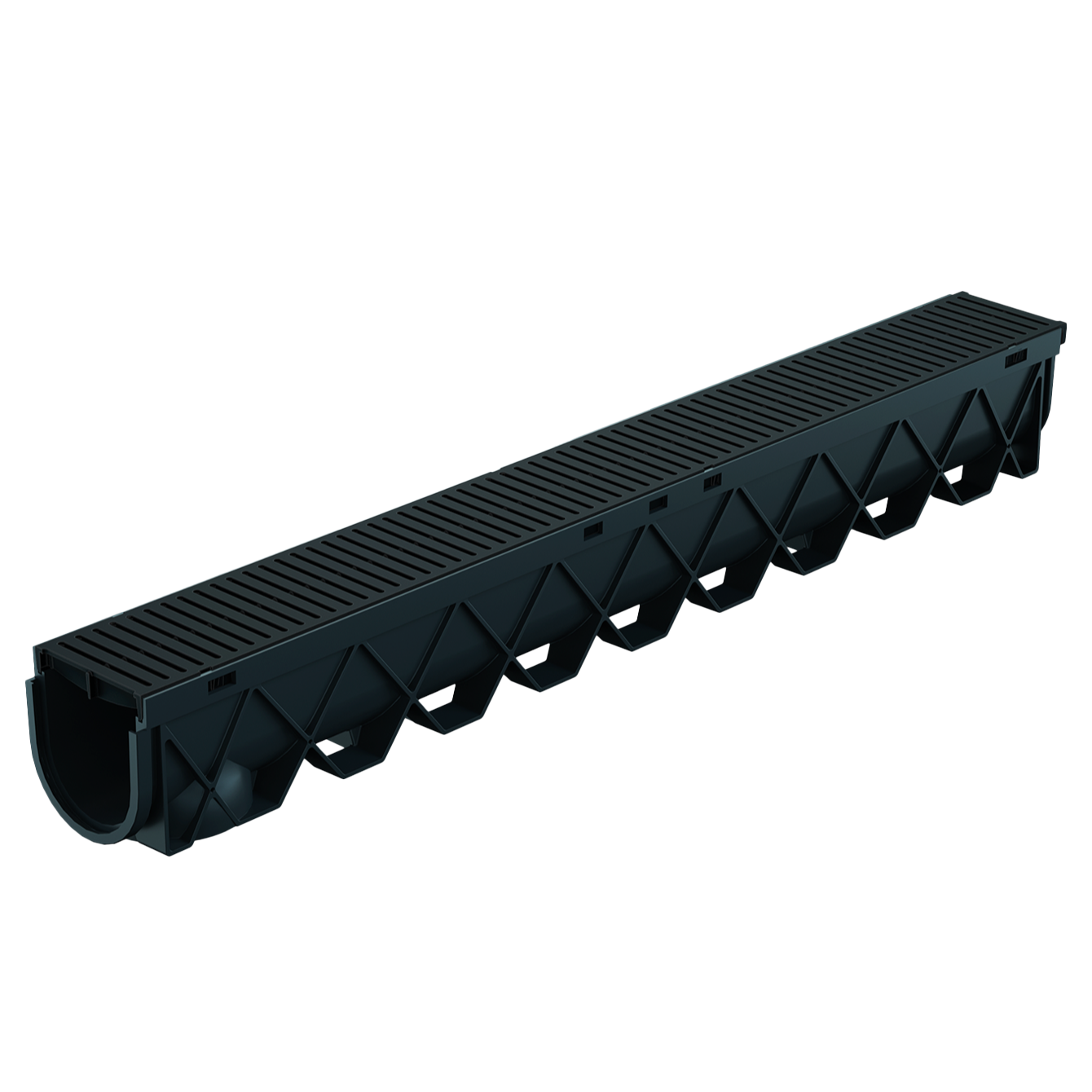

Storm Drain 1m complete with Grate
Storm Drain 1m complete with Grate
SKU:
Competitor sku:
Specification:
Colour:
Load rating:
Opening diameter:
Google mpn:
Offset distance:
Dimension:
Material:
Width:
Height:
Length:
Google custom label 0:
Google custom label 1:
Google custom label 2:
Google custom label 3:
Google custom label 4:
Google size system:
Features
The Storm Drain is a comprehensive surface drainage solution with a deep 100mm profile, efficiently collecting and distributing large volumes of water.
External Dimensions: 1000mm (L) x 121mm (W) x 129mm (D)
Internal Dimensions: 1000mm (L) x 100mm (W) x 100mm (D)
- Durability: Made from tough, lightweight, UV-stabilised recycled plastic.

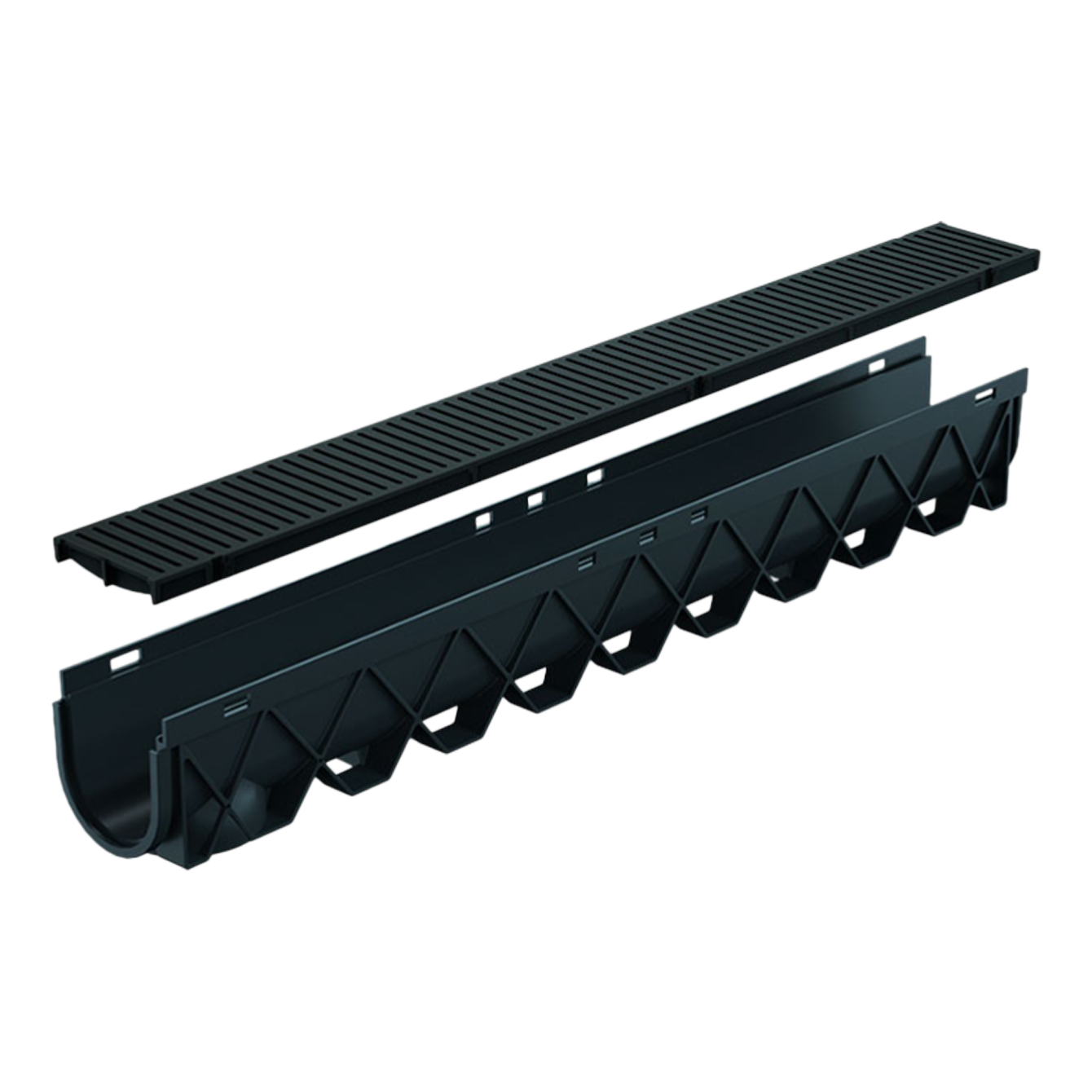

- Easy to Install: Features connecting channels, clip-in grates, and hold-down feet to prevent floatation.
- Flexible Lengths: Available in 1m and 3m lengths with fewer joins.
- Efficient Hydraulics: Half pipe profile ensures efficient water flow.
- Self-Cleaning Base: Stays clean even at low water levels.
- Complete Solution: Accessories and grate options for various applications.
- Class A Load Rating: Withstands light vehicle traffic when installed in concrete.
- Deep Profile: 100mm deep for capturing large water volumes.
- Plumber-Friendly: Fits 90mm PVC stormwater pipe, cut or drilled as needed.
- Eco-Friendly: Made from 100% UV-stabilised recycled plastic.
- Connection: Use silicone for PVC pipe connections; plumbers glue won't adhere to polypropylene.
Warranty: 10 Years
Please note that we do not sell directly to the public. View our Store Locator page for your nearest merchant.
