The Spartan Top Plate & Stud Bracket (STSB) is a solution for creating service holes in timber framing. It allows drilling of a maximum 60mm diameter hole through top plates (including packers) or wall studs, facilitating the passage of utilities such as plumbing pipes, air conditioning ducts, or central vacuum lines. By installing the STSB, the structural integrity of the penetrated member is effectively restored.

The STSB is independently certified in New Zealand by an International Structural Engineering company.

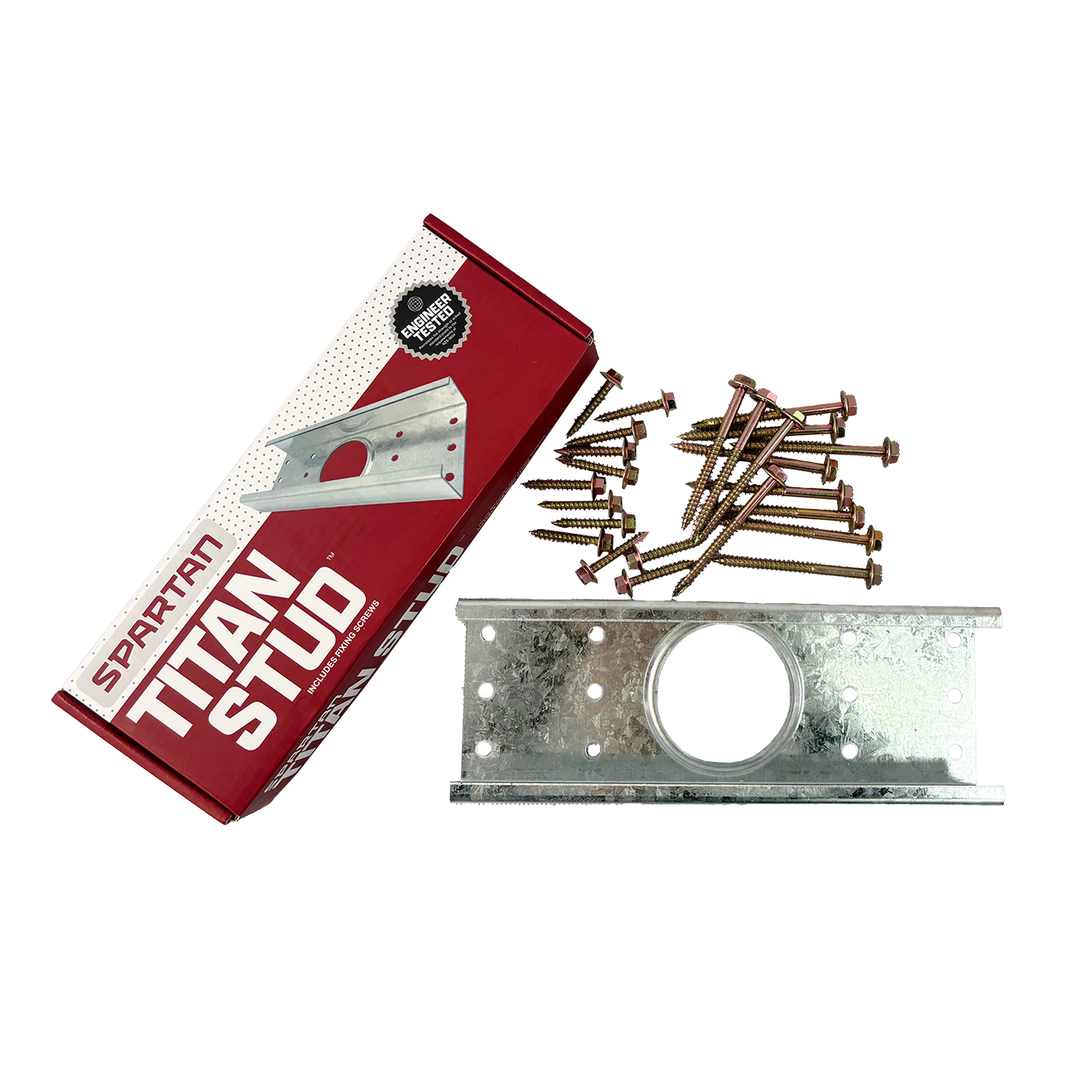

• Material: Galvanised steel for long-lasting corrosion resistance

• Thickness: 1.6mm for robust structural support

• Size: 35mm (H) x 87mm (W) x 240mm (L)

• Fasteners Required (All screw holes must be filled):

  • 12x 75mm Hex head Tek screws for Double stud or top plate

  • 12x 35mm Hex head Tek screws for single stud or top plate

Quick 2-Step Installation:
1. Drill hole – see important details in instructions
2. Install TITAN STUD™

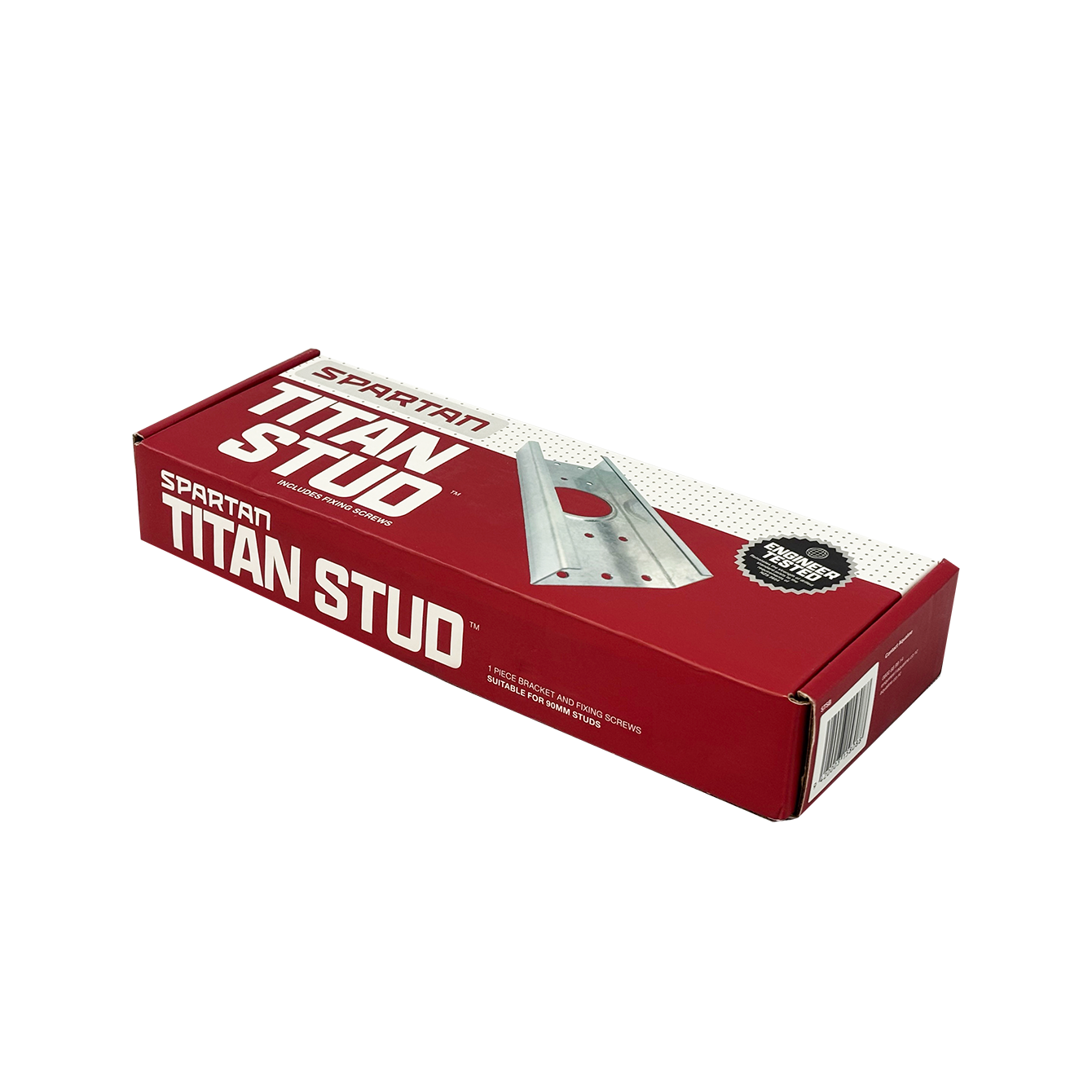

Get Yours: Purchase the SPARTAN TITAN STUD bracket from your local plumbing merchant or find a stockiest using our locator.
