Simple. Secure. Reliable.

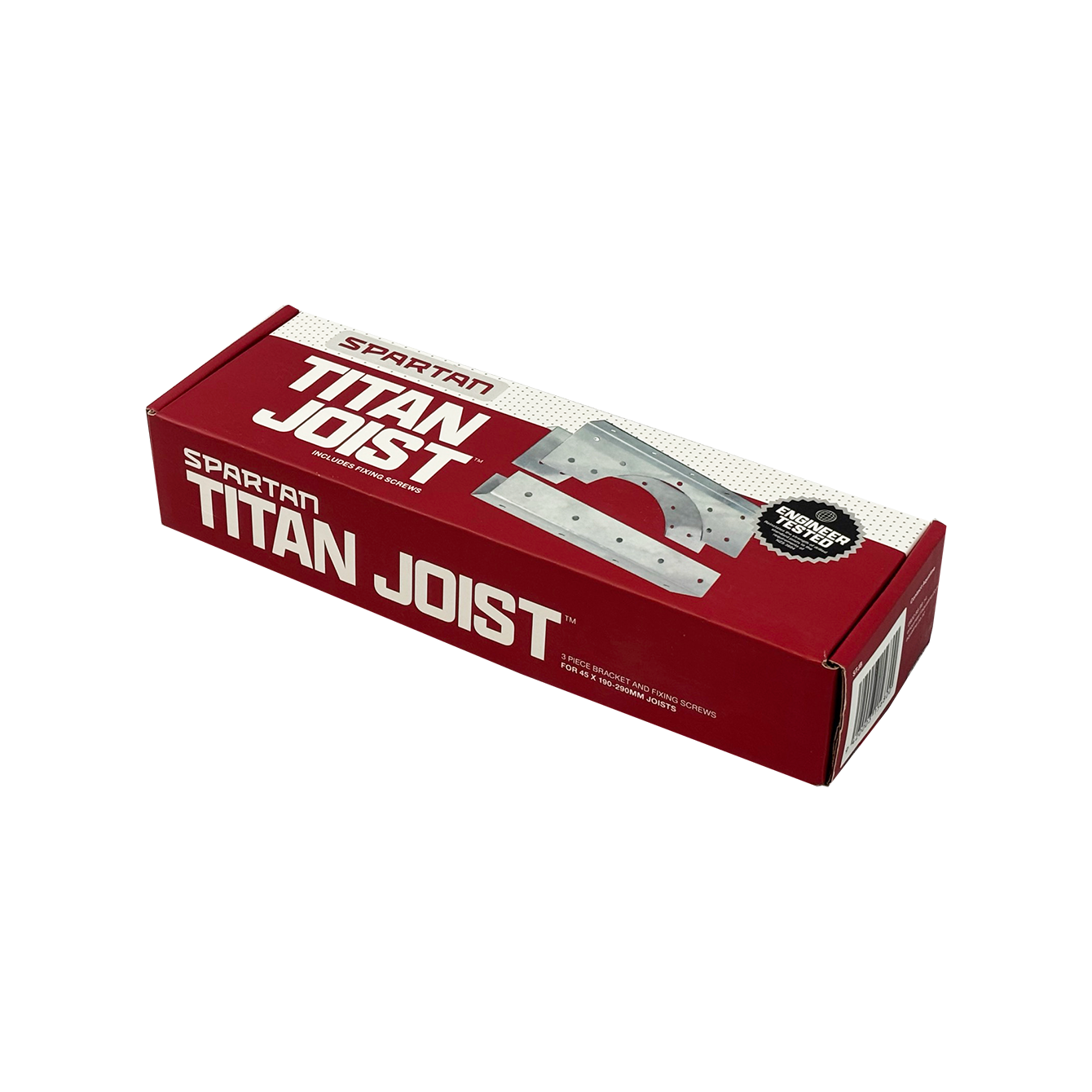

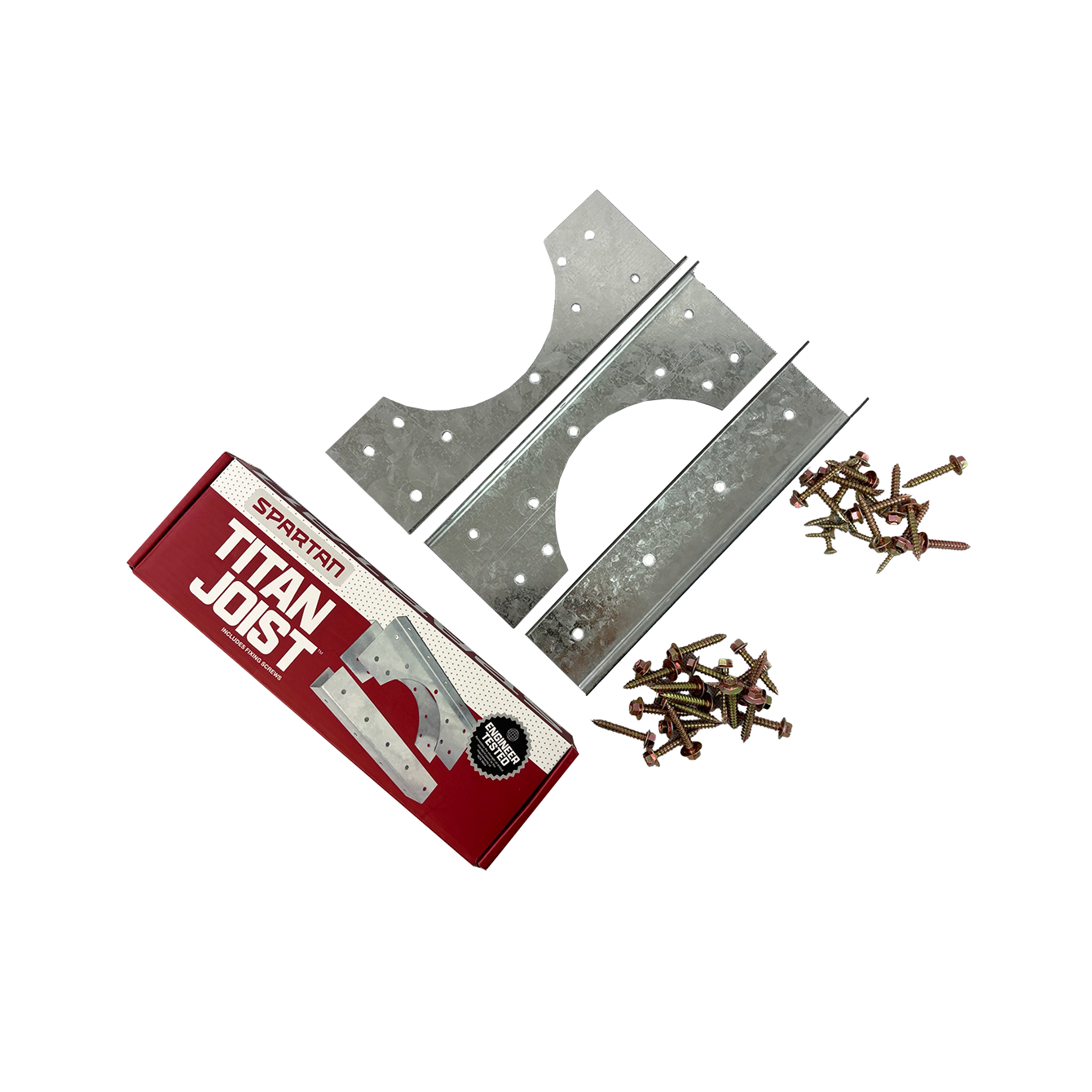

The Spartan Titan Joist Bracket Single (STJB) is designed to allow larger holes to be cut in floor joists. Installing a Spartan Titan Joist Bracket re-instates the structural integrity of the penetrated joist.



The fast, reliable solution for reinforcing penetrated studs, top plates, and joists.

• Material: Galvanised steel for long-lasting corrosion resistance

• Thickness: 1.6mm for robust structural support

• Joist Heights Suitable: 140mm – 290mm, accommodating a wide range of joist sizes

• Joist Width Suitable: 45mm

• Fasteners Required:

  • 30 × 35mm Hex head Tek screws

  • 10 × 20mm Square head screws

• Purpose: Designed to securely support joists in decking or structural applications

• Durability: Heavy-duty construction ensures stability and reliability over time

Quick 3-Step Installation:
1. Drill hole - important details in instructions
2. Install top brackets (x2)
3. Install bottom bracket (x1)

Get Yours: Purchase the SPARTAN TITAN JOIST Bracket from your local plumbing merchant or find a stockiest using our locator.
