Stainless Steel Gas Pigtail Hose

Stainless Steel Gas Pigtail Hose

SKU:

Diameter
Width:
Length:
Height:
Diameter 1:
Diameter 2:
Diameter 3:
Material:
Offset distance:
Load Rating:
Colour:

Ensure a safe and reliable connection between your gas cylinder and regulator with our durable Gas Cylinder Pigtail Hose. Constructed from high-quality braided stainless steel, this hose is designed for longevity across industrial, commercial, and residential applications. For enhanced safety, each hose features an integrated excess flow valve. In the event of hose failure, excess gas flow will automatically push a ball bearing at the POL/Handwheel end forward, creating a tight seal to prevent dangerous leaks.

Our pigtail hoses are manufactured in accordance with AS/NZS 5601.1 (Table J.9) standards. As a flexible pigtail conforming to AS/NZS 1869 Class F, and featuring an excess flow valve directly upstream of the hose assembly, this product has a maximum service life of 6 years from the date of manufacture, ensuring ongoing safety and compliance.

Features

Integrated Excess Flow Valve: Features a ball bearing mechanism at the POL/Handwheel end that automatically seals in case of hose failure, preventing dangerous gas leaks.

Material: Braided stainless steel construction provides exceptional durability and corrosion resistance for long-lasting performance.

Connections: Available with both NPT (National Pipe Thread) and BSPT (British Standard Pipe Taper) connections. Note: 1/4" NPT and BSPT threads are nearly identical and can be used interchangeably in most applications without noticeable differences to the installer.

Lengths: Choose from multiple lengths to suit your specific installation needs:

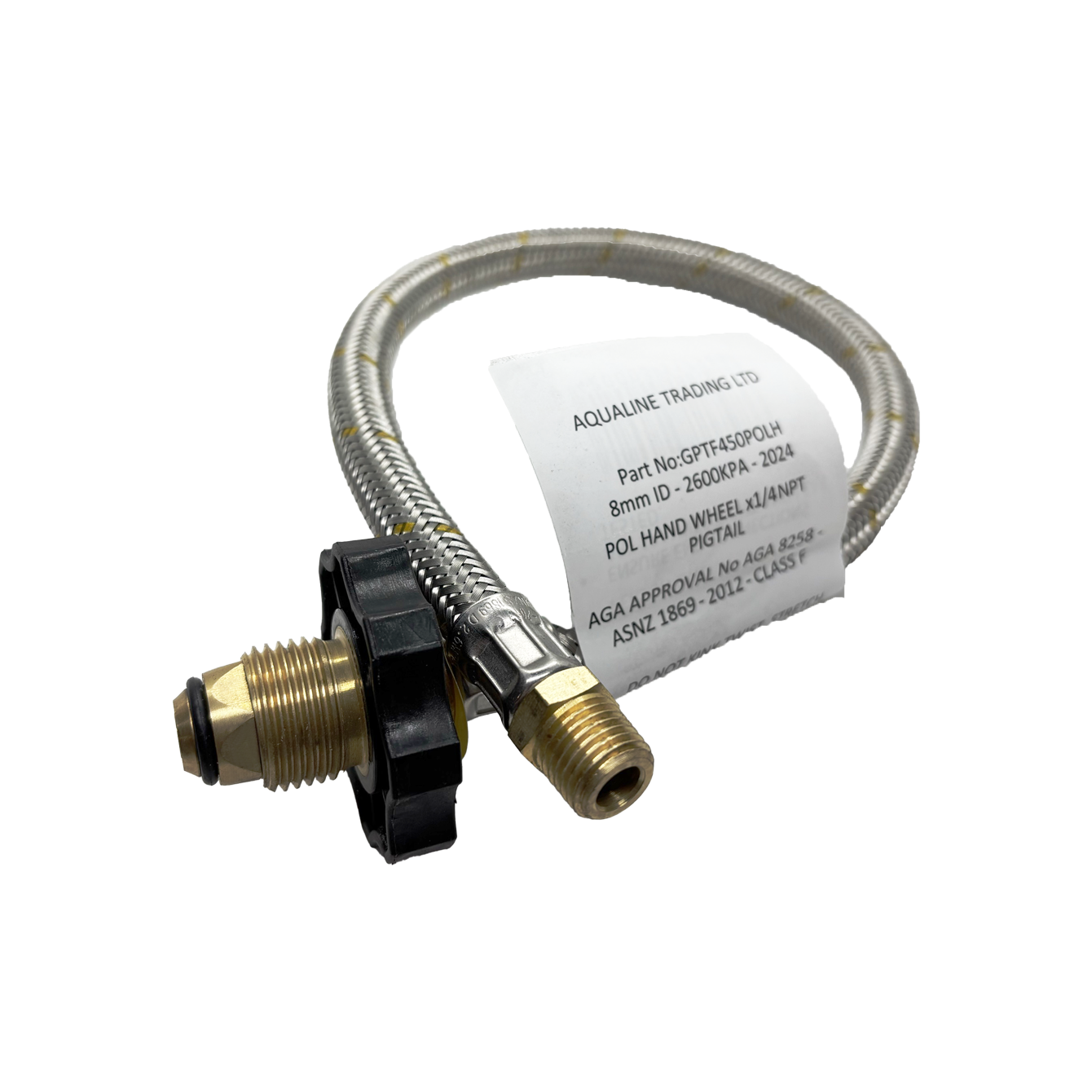

  • 450mm: POL ¼" NPT + Handwheel

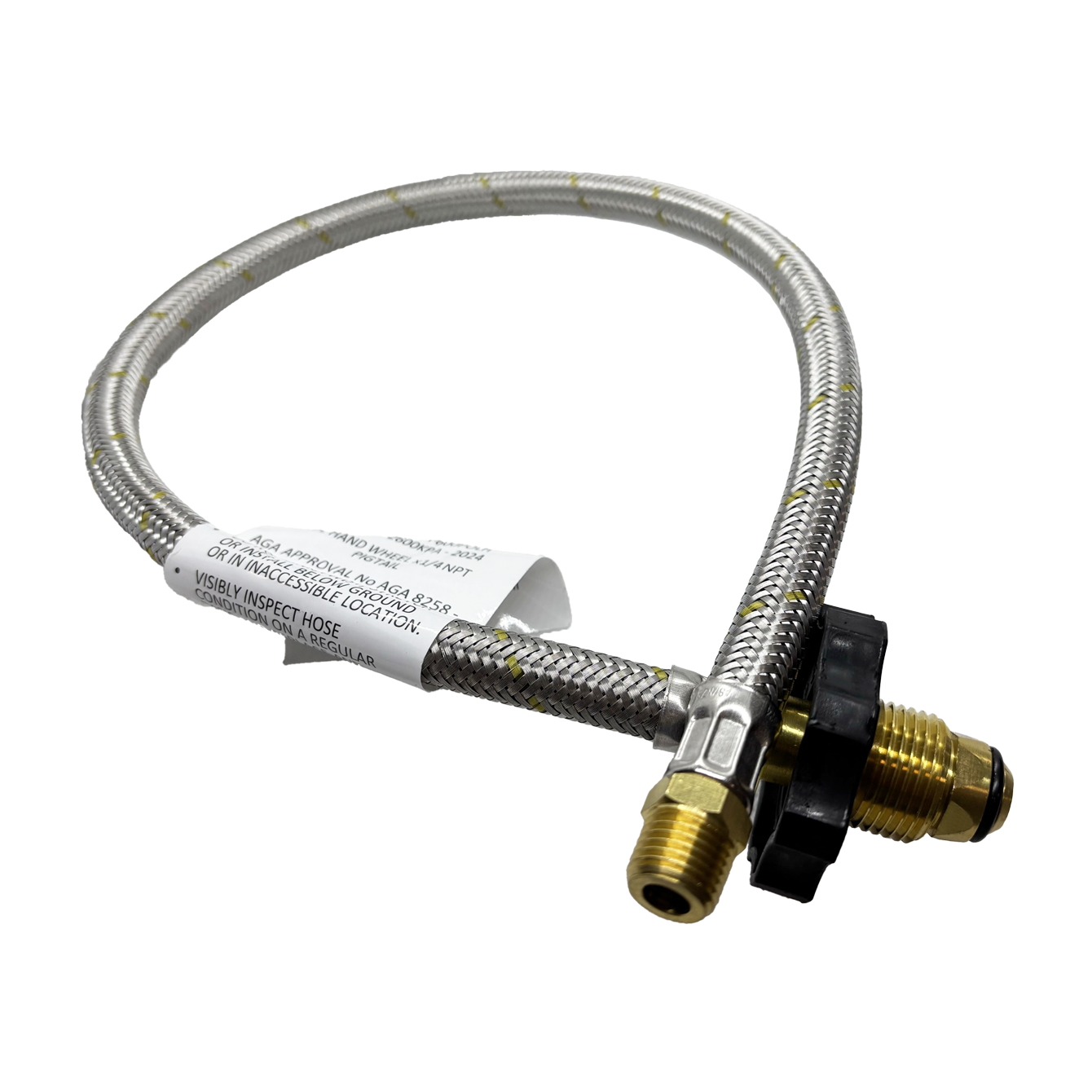

  • 600mm: POL ¼" NPT + Handwheel

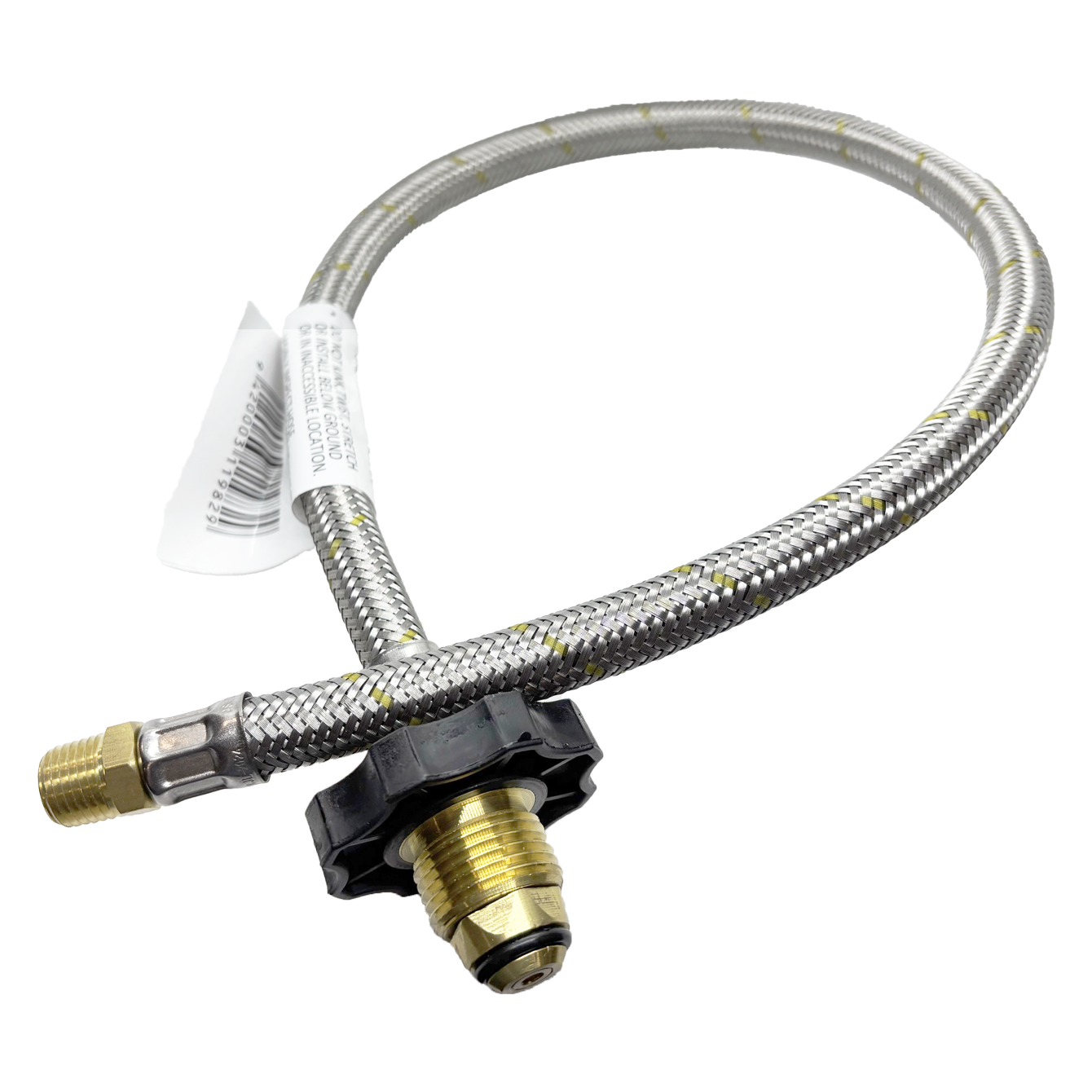

  • 600mm: POL ¼" BSPT + Handwheel
  • 760mm: POL ¼" NPT + Handwheel
  • 760mm: POL ¼" BSPT + Handwheel

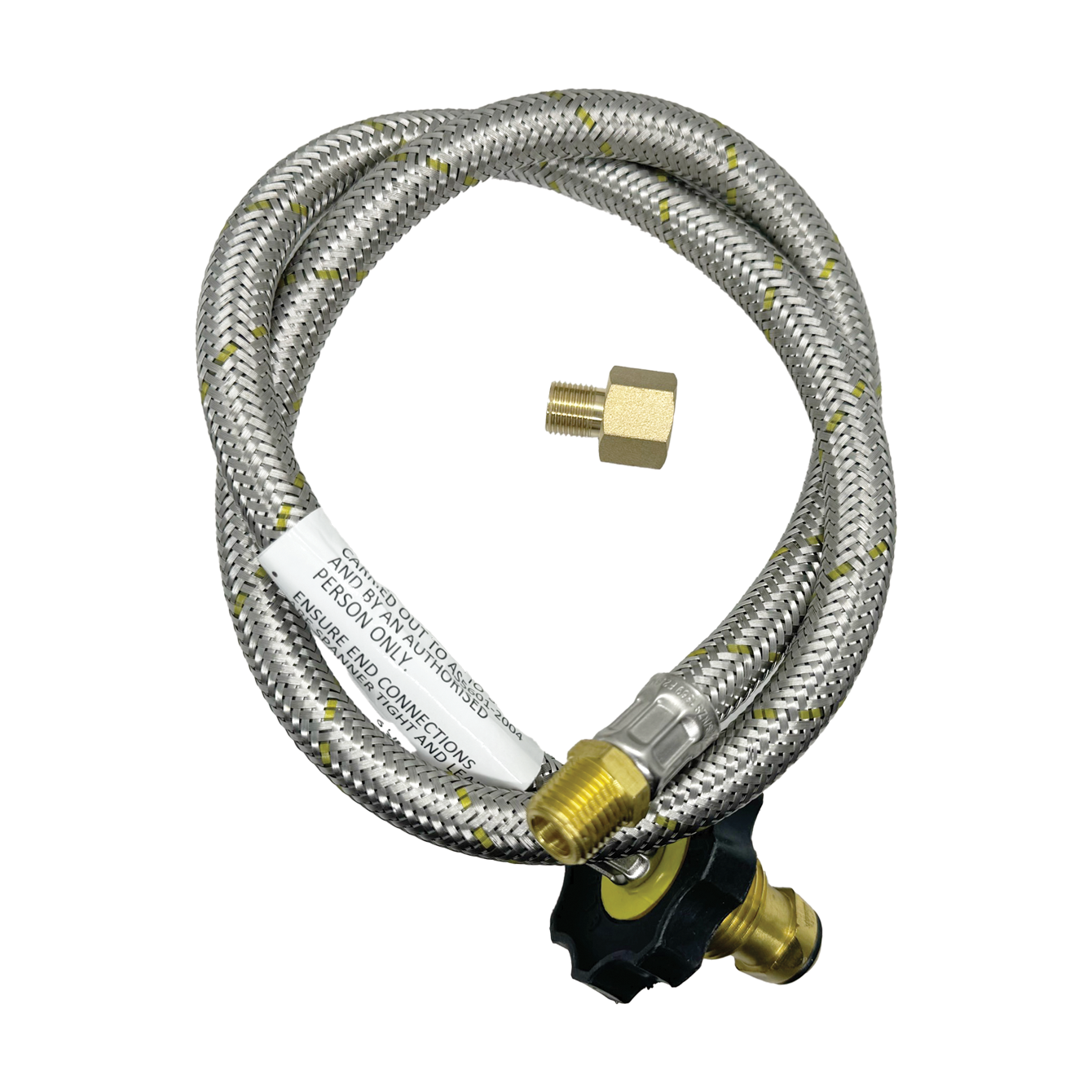

  • 760mm: POL ¼" BSPT + Handwheel + Pigtail/Reg Adaptor

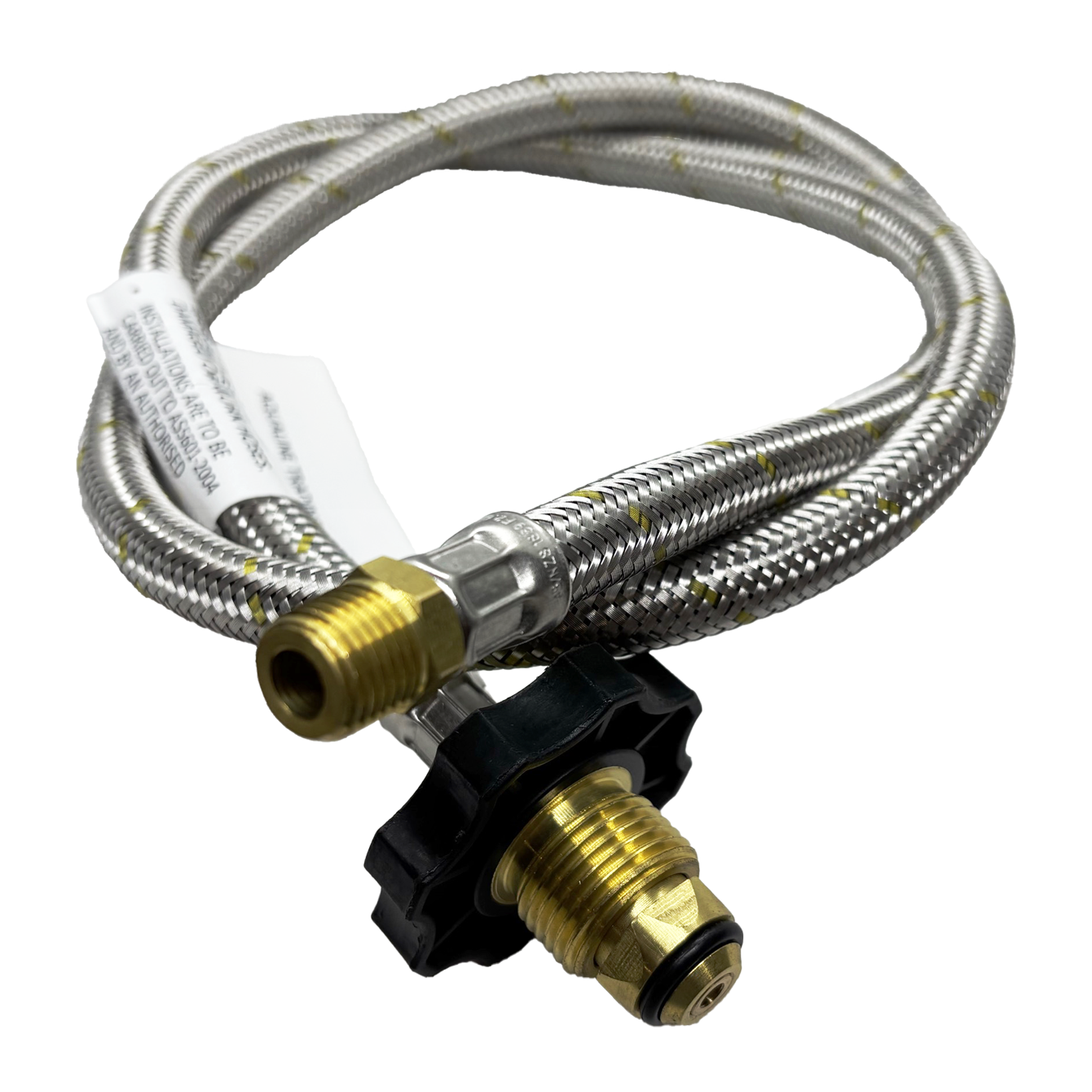

  • 1000mm: POL ¼" NPT + Handwheel

Handwheel: Ergonomic handwheel design allows for quick and secure manual tightening and loosening, simplifying installation and maintenance.

Flare Fitting: Precision flare fitting ensures a reliable, leak-free, and secure gas connection.

Warranty: Backed by a 5-year warranty from the manufacturing date, demonstrating our commitment to quality and your peace of mind.

Compliance: Manufactured in accordance with AS/NZS 5601.1 (Table J.9) and conforms to AS/NZS 1869 Class F standards. Features an excess flow valve with a maximum 6-year service life from the date of manufacture.

Applications: Ideal for a wide range of gas systems, including:

  • Industrial gas systems
  • Commercial kitchens
  • Residential gas installations
  • Outdoor grilling and heating

Why Choose Our Pigtail Hose?

Enhanced Safety: Integrated excess flow valve provides an extra layer of protection against gas leaks.

Versatile Compatibility: Suitable for a broad range of applications thanks to both NPT and BSPT connection options.

Superior Durability: High-quality braided stainless steel ensures long-lasting and reliable performance.

Ease of Installation: The user-friendly handwheel facilitates quick and secure connections.
Guaranteed Safety and Compliance: Meets AS/NZS 5601.1 and AS/NZS 1869 Class F standards with a 6-year maximum service life.

Peace of Mind: Comes with a 5-year warranty, plus the assurance of a safety-focused design.

Upgrade your gas system with our safe, reliable, and compliant Gas Cylinder Pigtail Hose. Order now from your local merchant and experience the difference in quality and performance!

Warranty: 5 years from date of manufacture
