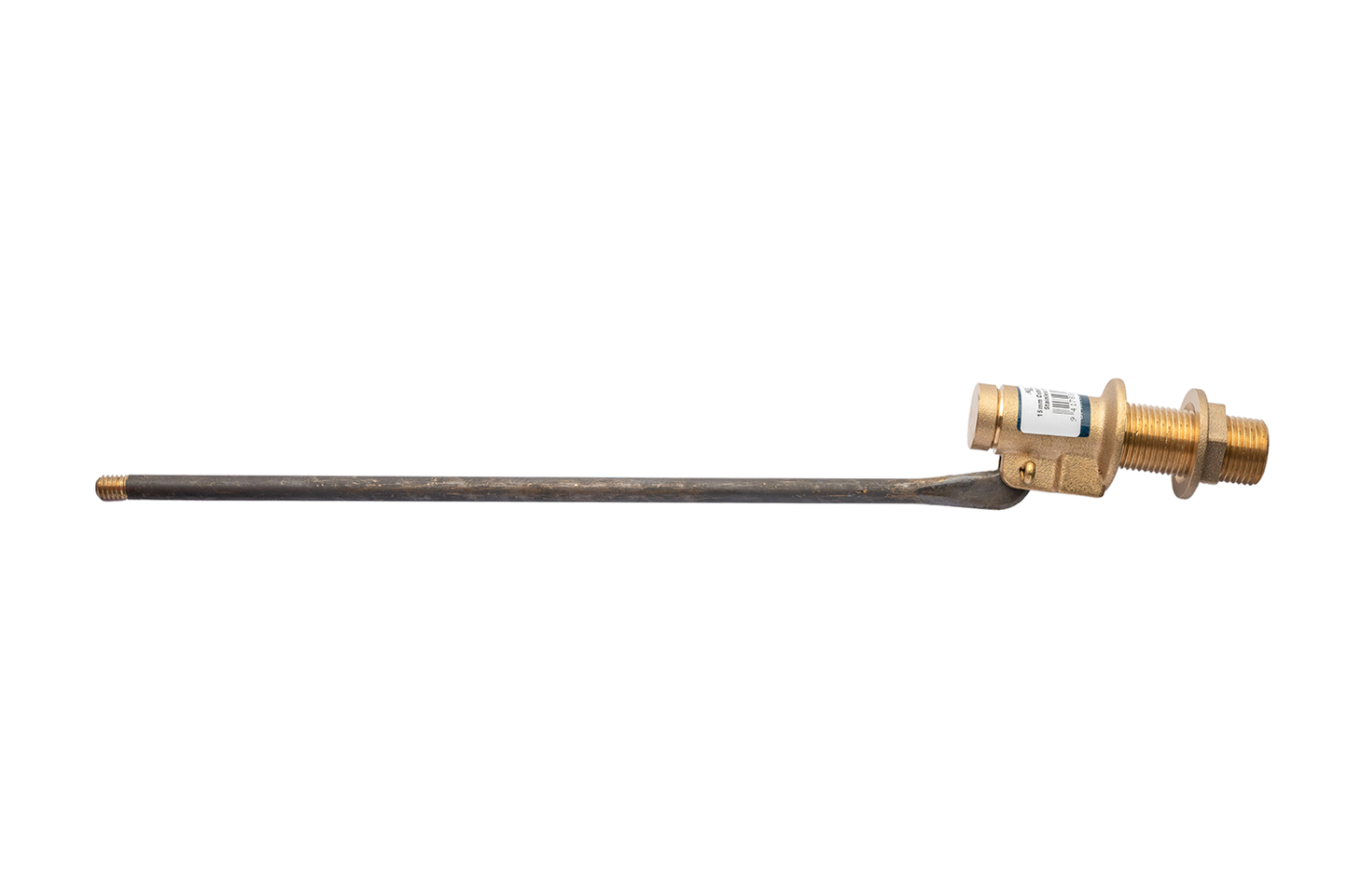

SPARTAN Low/Med and High Pressure Float Valve and Rod Assembly
SPARTAN Low/Med and High Pressure Float Valve and Rod Assembly
SKU:
Competitor sku:
Specification:
Colour:
Load rating:
Opening diameter:
Google mpn:
Offset distance:
Dimension:
Material:
Width:
Height:
Length:
Google custom label 0:
Google custom label 1:
Google custom label 2:
Google custom label 3:
Google custom label 4:
Google size system:
The Aqualine float valve is designed for reliable water control in troughs and cisterns, featuring a robust brass body and removable stainless steel seat. Fully serviceable and easy to maintain, it suits a wide range of High to Medium and Low pressure applications.
Key Features:

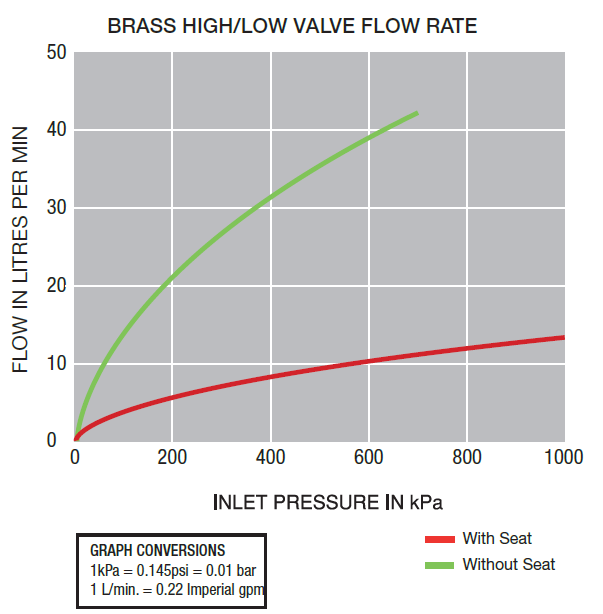

- Versatile pressure range:
- With seat: 0–1000 kPa (0–150 psi), flow rate up to 14 L/min at 1000 kPa
- Without seat: 0–700 kPa (0–100 psi), flow rate up to 42 L/min at 700 kPa
- Temperature range: 1°C to 60°C
- Available sizes: 15mm (½”) and 20mm (¾”), with standard and long lever options
- High and low pressure variants available
- Accessories: Floats (115mm/150mm), spare arms, short arms, service kits
Applications:
Ideal for residential and commercial cisterns, troughs, and water storage systems requiring medium or low pressure control.
Please note that we do not sell directly to the public. View our Store Locator page for your nearest merchant.
SPARTAN Low/Med and High Pressure Float Valve and Rod Assembly
SKU:



Competitor SKU:
Find a Merchant
You can find Aqualine products at most leading plumbing merchants across New Zealand.
